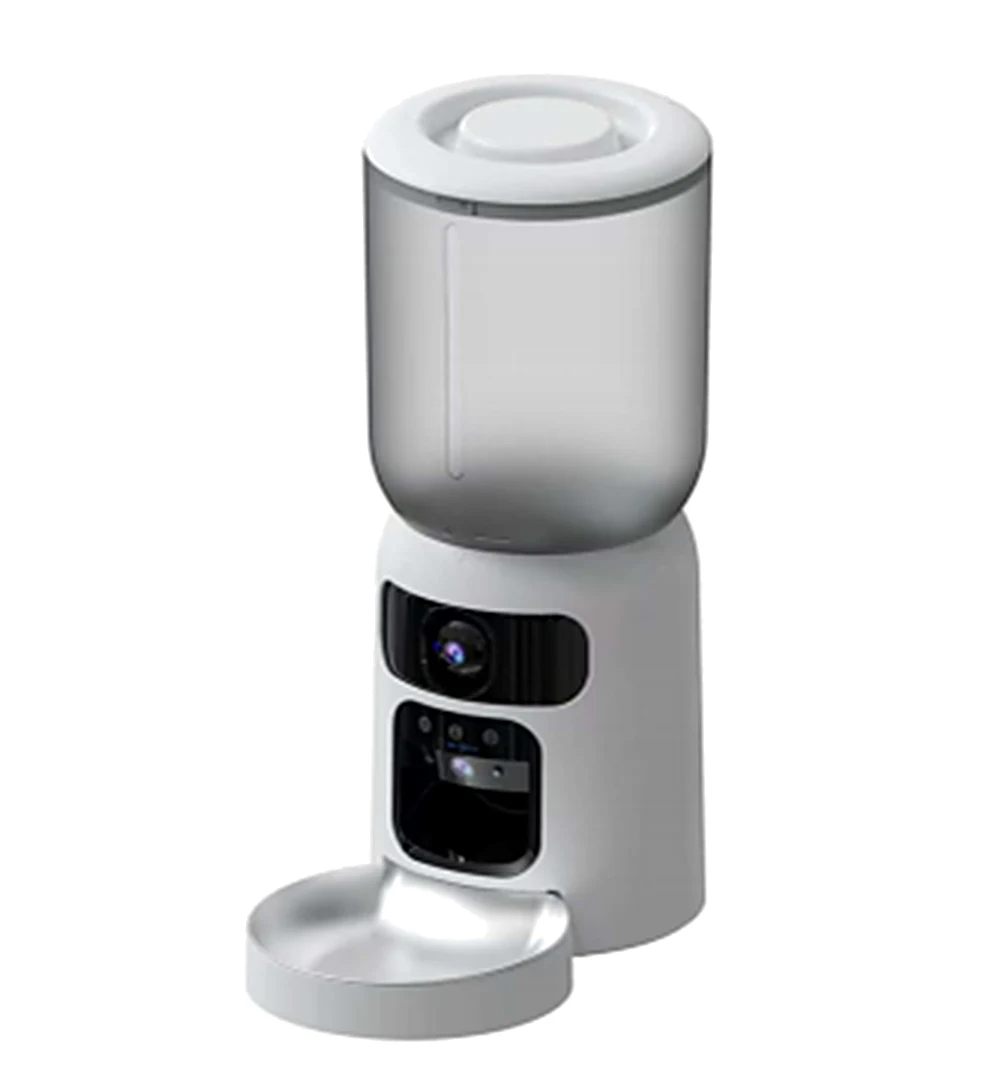

The PF4 is an automatic cat feeder with dual cameras for cats and small dogs. Two 3 MP colour cameras with 940 nm infrared night vision cover the feeding zone from two angles, while AI pet recognition tells you which animal is at the bowl.

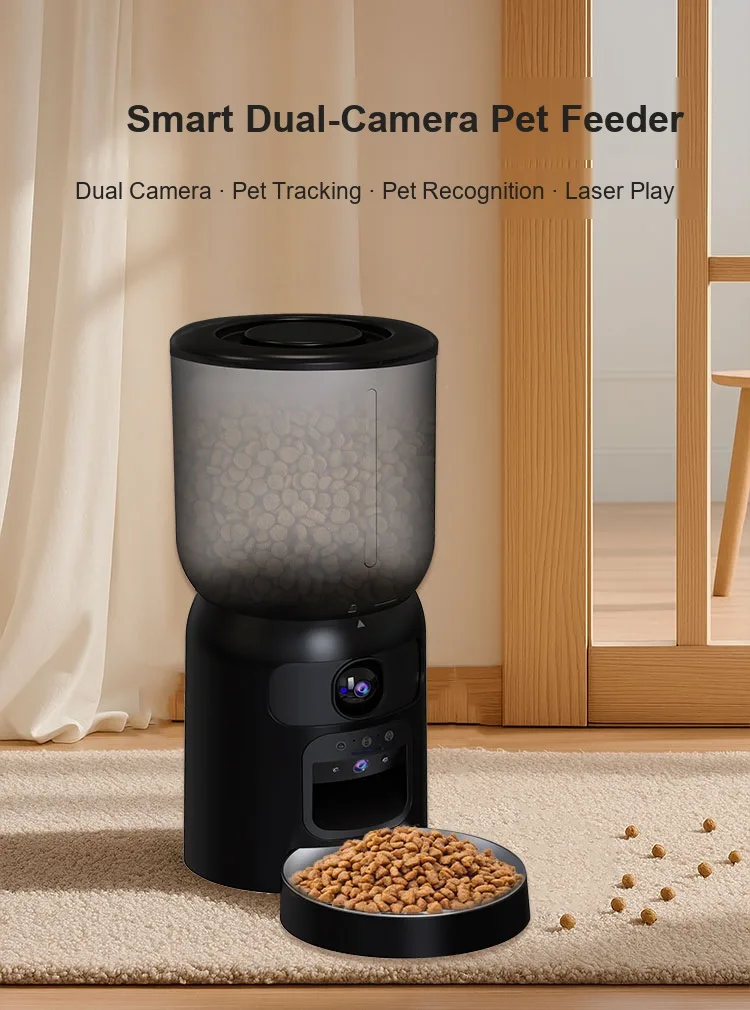

Schedule up to 10 meals per day (1–15 portions per meal) in the iOS/Android app over 2.4G/5.8G Wi-Fi, watch live video, talk to your pet through two-way audio, and start a built-in laser play session remotely. A 3 × D battery backup keeps feeding on schedule during power cuts.
Product gallery
Feature details

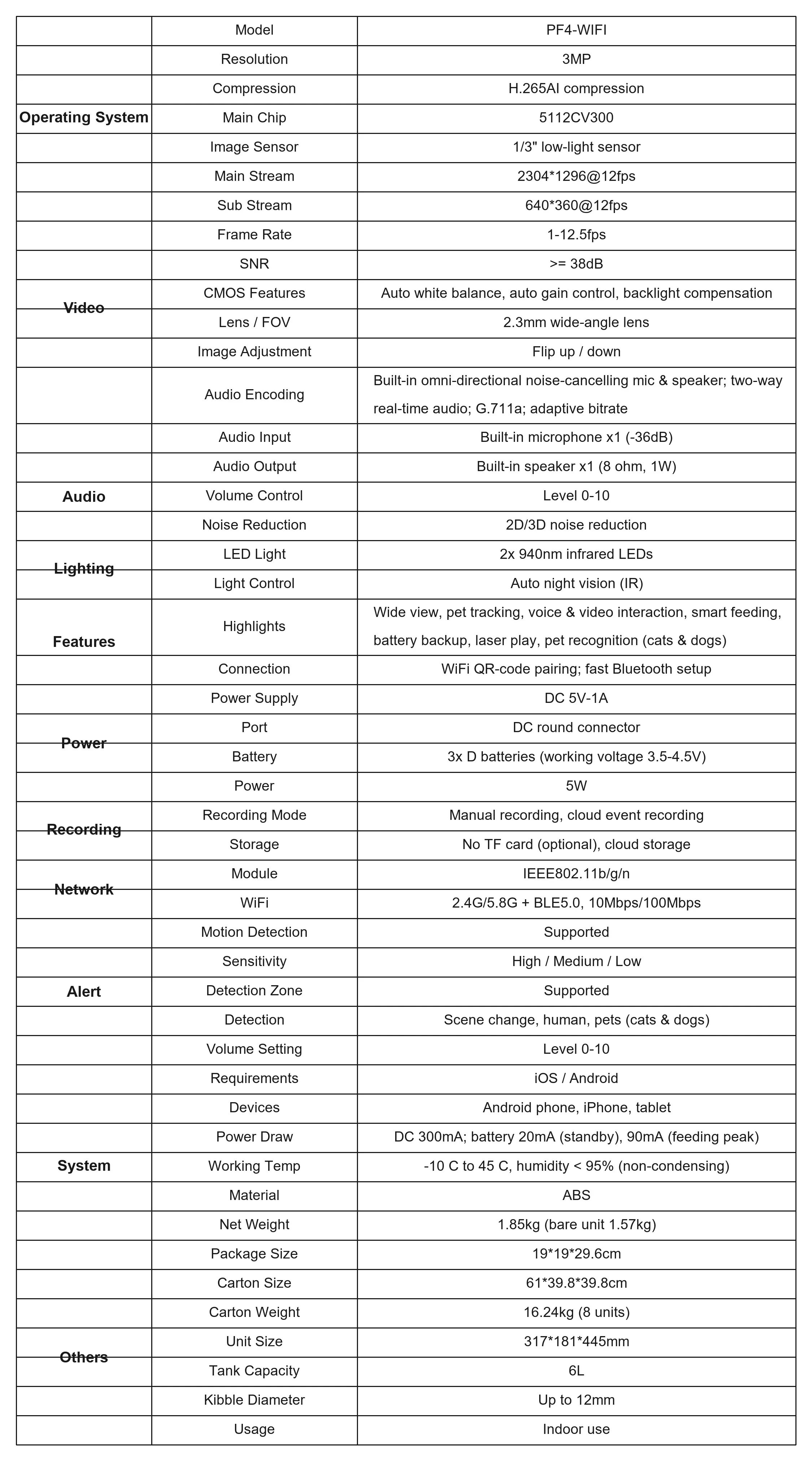

Specifications
| Camera | 2 × colour cameras; 1/3" 3 MP CMOS sensors |
|---|---|
| Lens | 2.3 mm wide-angle, field of view D142° / H113° / V65°, tilts up & down |
| Night vision | 2 × 940 nm IR LEDs, auto night vision (IR) |
| Video | Main stream 2304×1296 @ 12 fps; sub stream 640×360 @ 12 fps; SNR ≥ 38 dB |
| Audio | Two-way, omni-directional noise-cancelling mic & speaker (G.711a) |
| Food capacity | 6 L tank; kibble up to 12 mm; anti-clog dispensing |

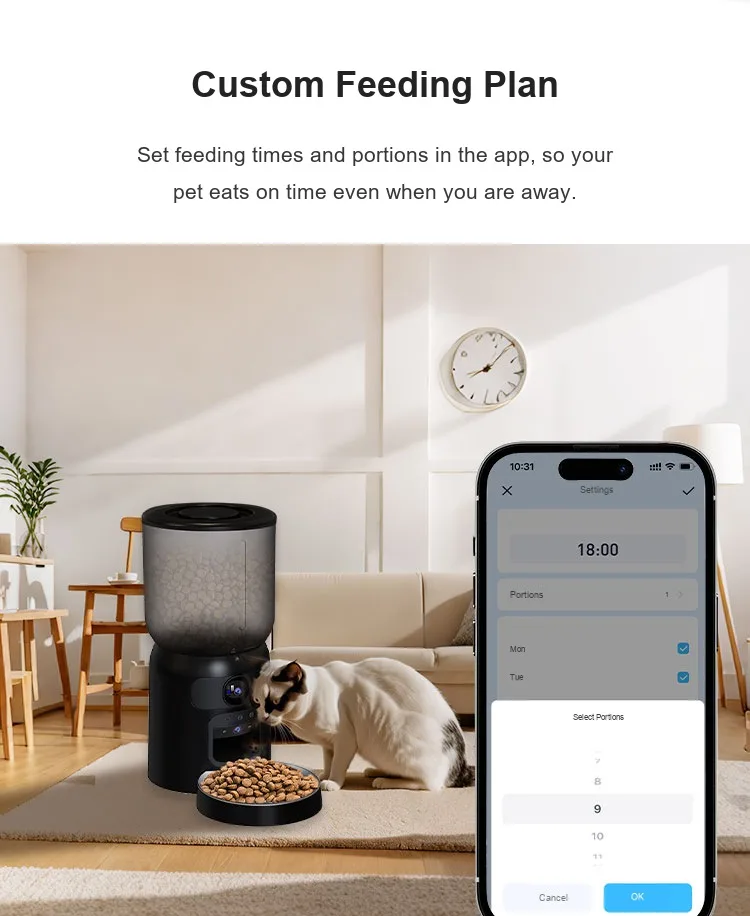

| Feeding plan | 1–10 meals/day, 1–15 portions per meal; feeding data records in app |
| Smart features | Pet tracking, pet recognition (cats & dogs), built-in laser play, feeding data |
| Connection | 2.4G/5.8G Wi-Fi (IEEE802.11b/g/n) + Bluetooth 5.0 fast pairing |
| Storage | Manual & cloud event recording (no TF-card slot) |
| Alerts | Motion detection, sensitivity high/medium/low, scene & pet detection |

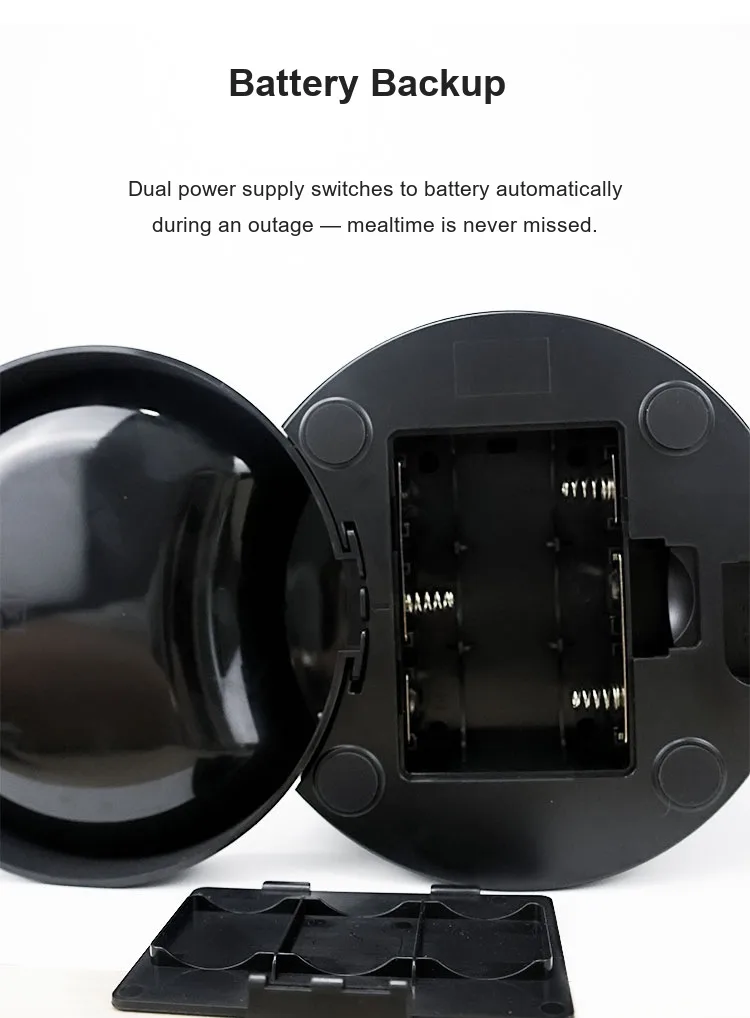

| Power | DC 5V-1A, 5 W; 3 × D battery backup for power cuts |
| App | iOS / Android |

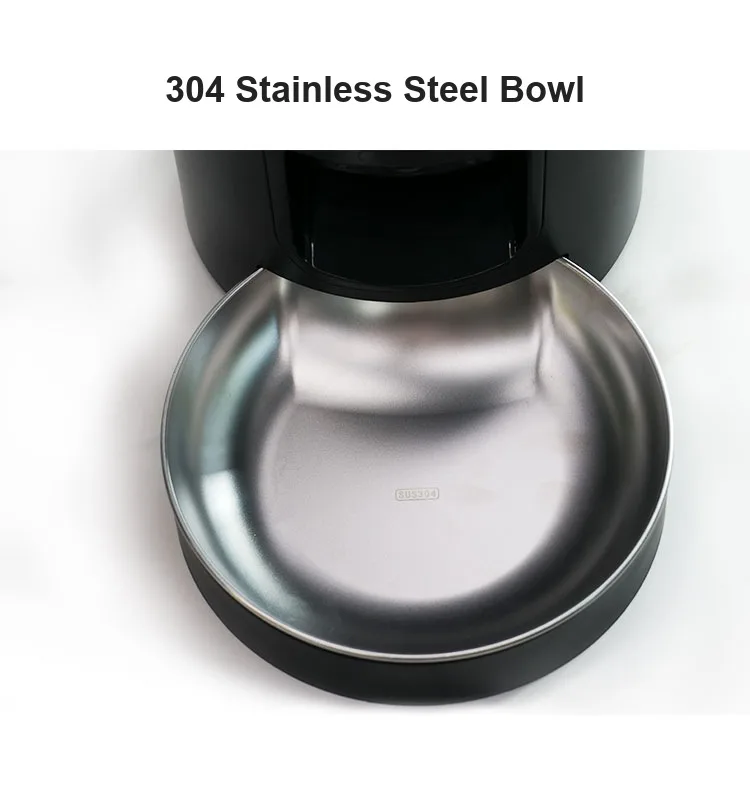

| Material | ABS body, 304 stainless steel bowl |

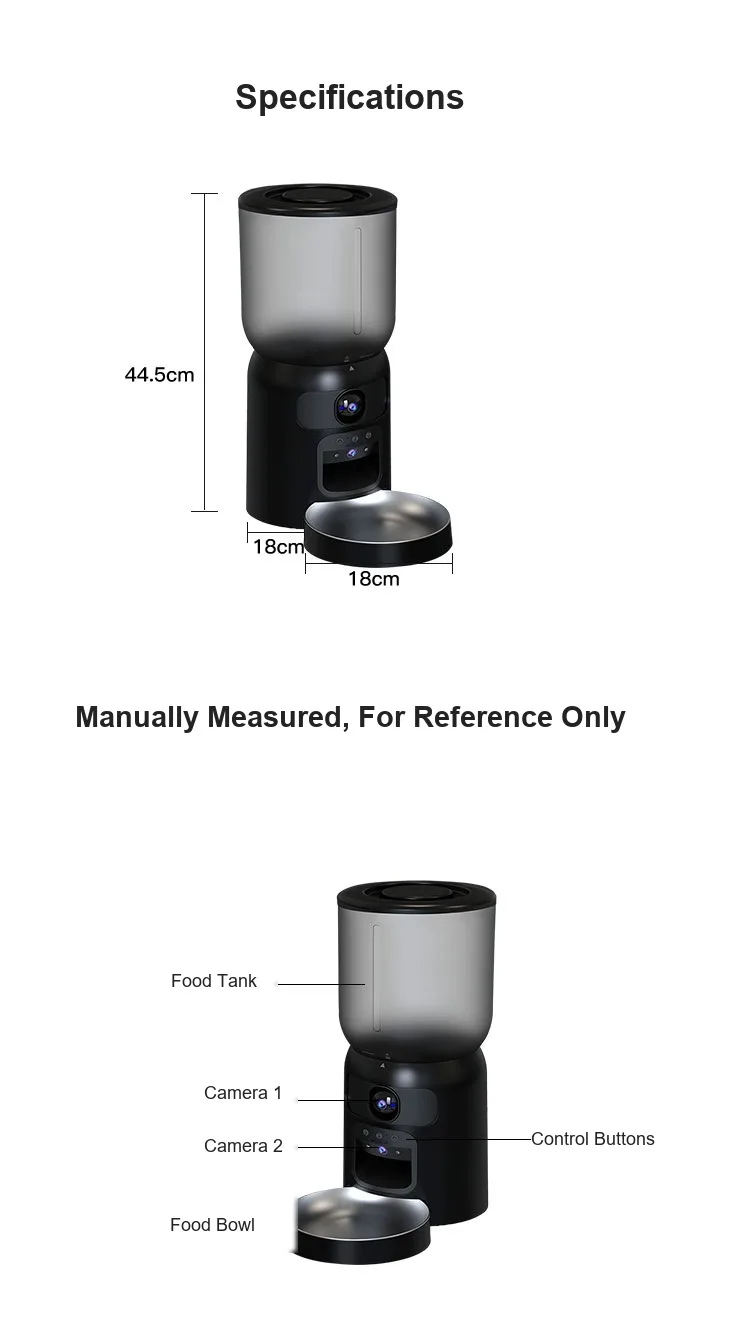

| Unit size / weight | 317 × 181 × 445 mm; 1.85 kg net (bare unit 1.57 kg) |
| Working environment | −10 °C to 45 °C, humidity < 95% (non-condensing), indoor use |
Packing & freight
| Retail package | 19 × 19 × 29.6 cm |
|---|---|
| Export carton | 61 × 39.8 × 39.8 cm, 8 units per carton, 16.24 kg per carton |

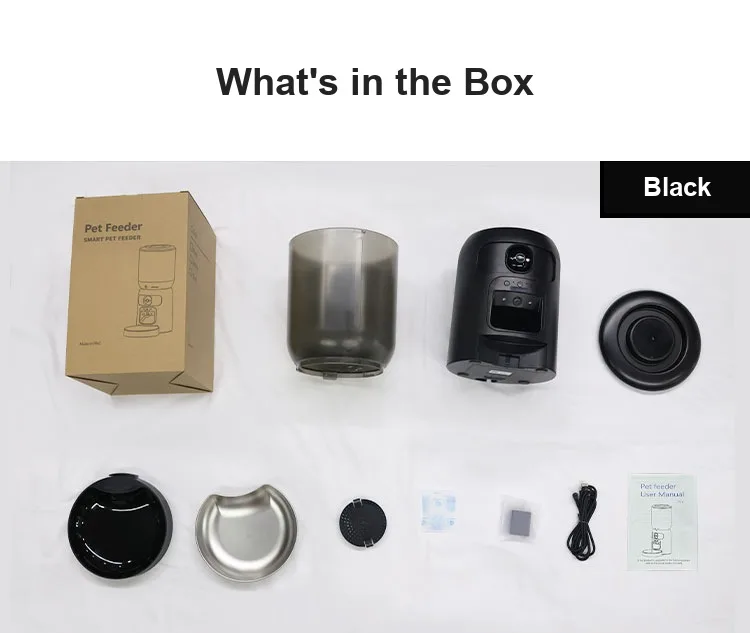

In the box
- Feeder unit
- 304 stainless steel bowl
- Retail packaging
- Instruction manual
- Data cable
- Screw bag
Frequently asked questions
Does the PF4 keep feeding during a power cut?
Yes. The PF4 runs on DC 5V power with a 3 × D battery backup, so scheduled feeding continues during power outages.
Can the PF4 recognise which pet is eating?
Yes. AI pet recognition distinguishes cats from dogs at the bowl and sends a notification to your phone.
What kibble size does the PF4 support?
Kibble up to 12 mm diameter. The dispenser is freeze-dried friendly and designed against clogging.
How many meals can I schedule per day?
Up to 10 meals per day with 1–15 portions per meal, configured in the iOS/Android app over 2.4G/5.8G Wi-Fi.
We publish only the specifications we can confirm in writing. Full packing and certification data is confirmed with every PF4 quotation.
