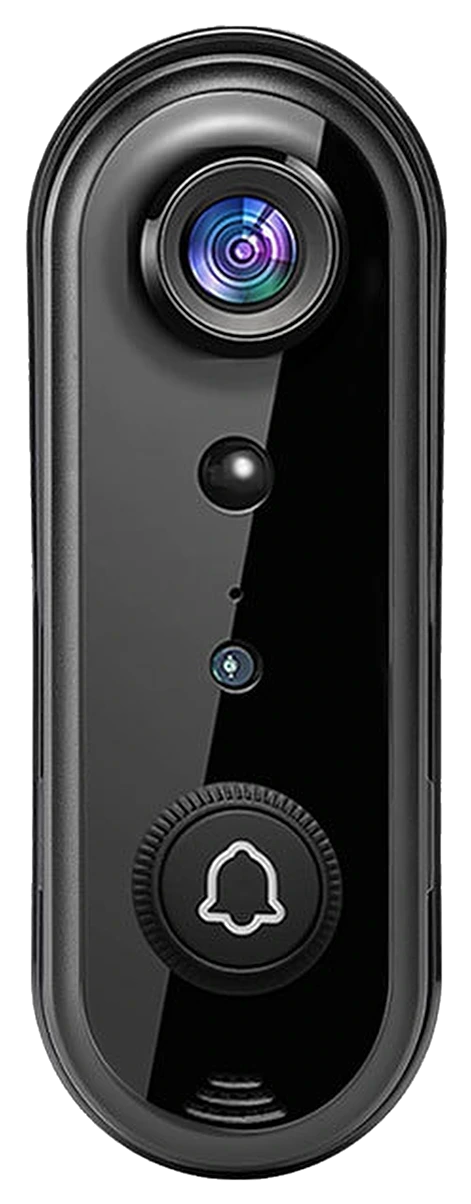

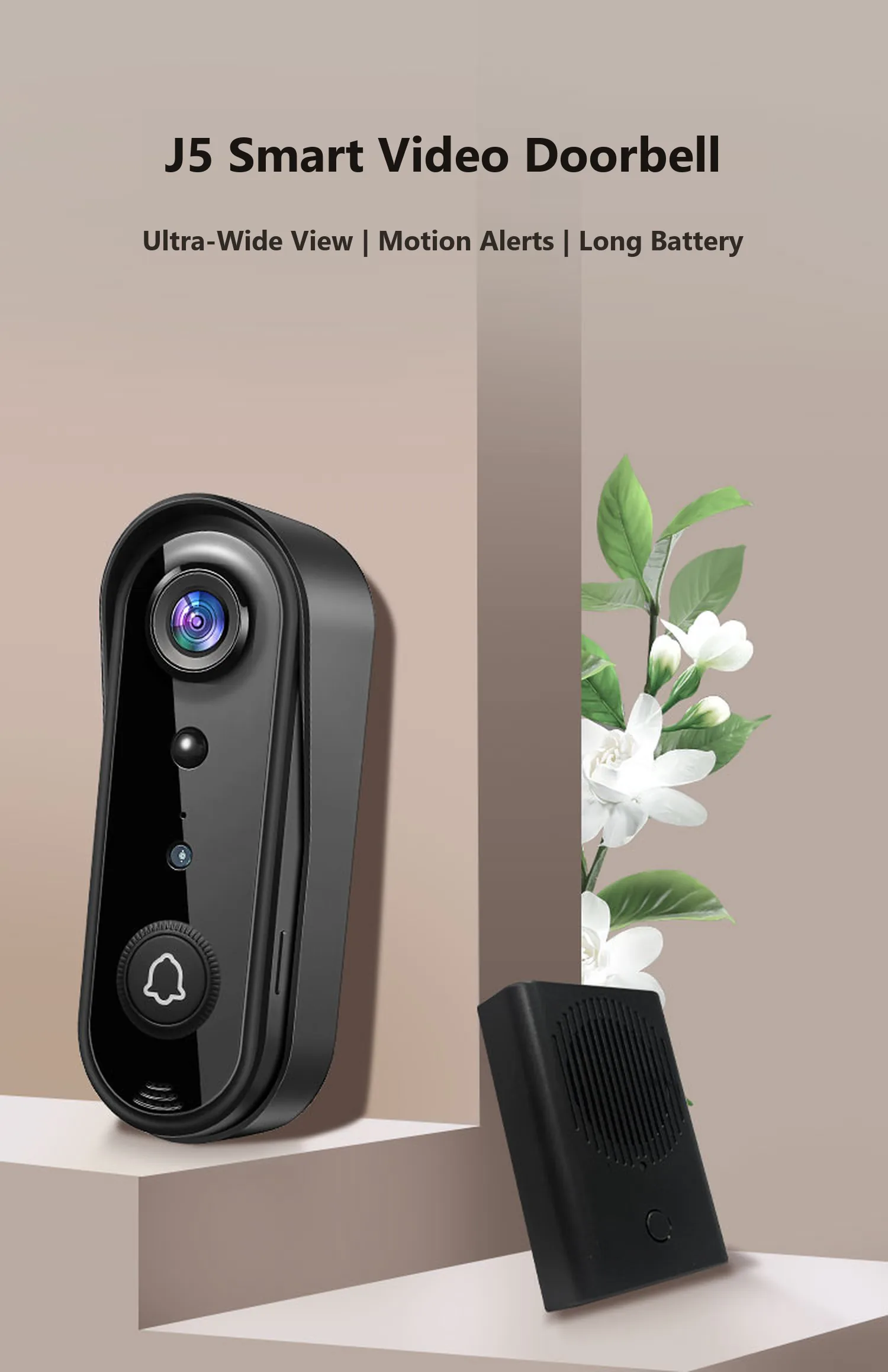

J5 Video Doorbell Camera — 2K Portrait View, Head to Toe, Receiver and Speaker Included
- Portrait 2K — head to toe — a vertical sensor shows the visitor and the parcel at their feet in one frame, not just a face.
- Ultra-wide vertical view — built for the shape of a doorway instead of a landscape crop of it.
- 4 IR LEDs — clear night footage of the whole doorway, top to bottom.
- Receiver and speaker in the box — the indoor unit is a chime, not just a buzzer.
- AI human detection and two-way call — alerts you when a person is there, talks to them when you want to.

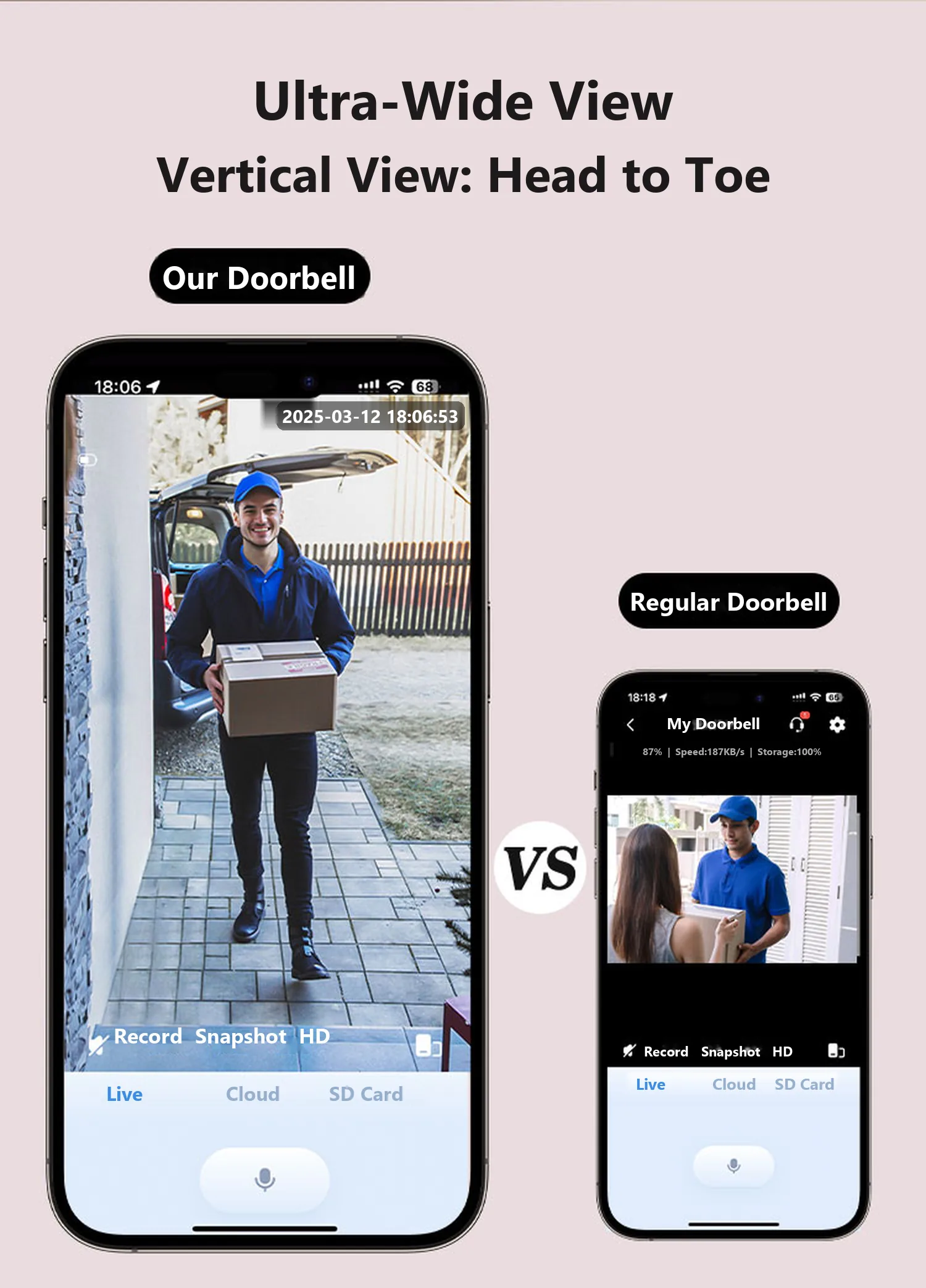

Head to Toe, Not Just a Face
A landscape doorbell crops a visitor at the shoulders. The J5 uses a portrait sensor — 1440 × 2560 — so the frame follows the shape of a standing person and still catches a parcel left on the step.
2-in-1: Doorbell and Camera
One unit covers the bell, the doorway camera and the parcel check — the same housing, the same app, the same recording rules.
4 IR LEDs for Real Night Coverage
A taller frame needs light top and bottom, so the J5 carries four IR LEDs; the doorway stays readable well past the point where a two-LED unit gives up.

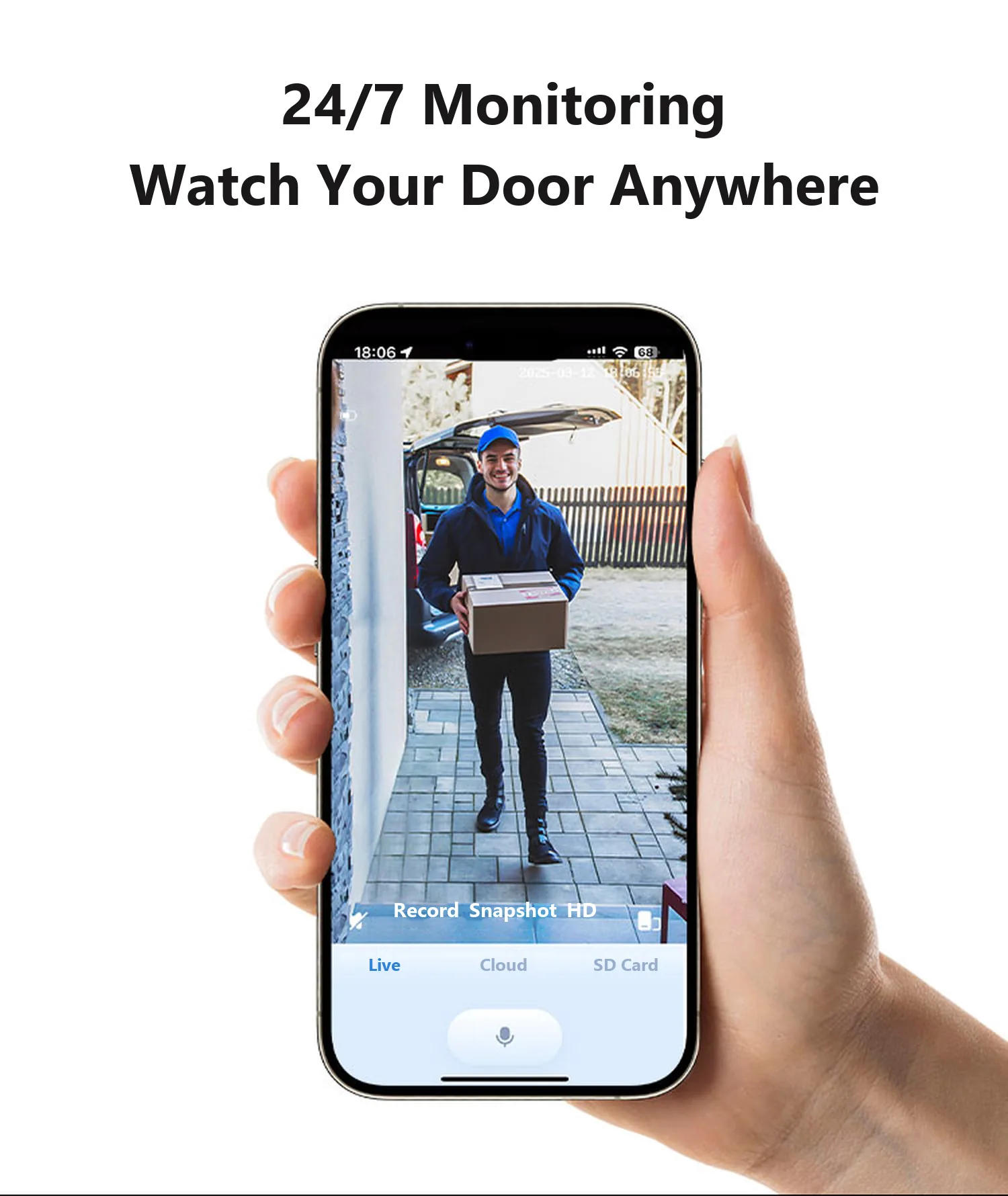

24/7 Monitoring from Anywhere
Open the app and the door is there: live view, event list, recorded clips. No subscription needed to see what happened.
AI Human Detection
Person-shaped movement raises the alert; passing traffic and moving plants do not. The phone only buzzes when it matters.
Two-Way Call — Safe When Home Alone
Answer without opening. Talk to a courier, put off a cold caller, or check in on someone at the door from another city.

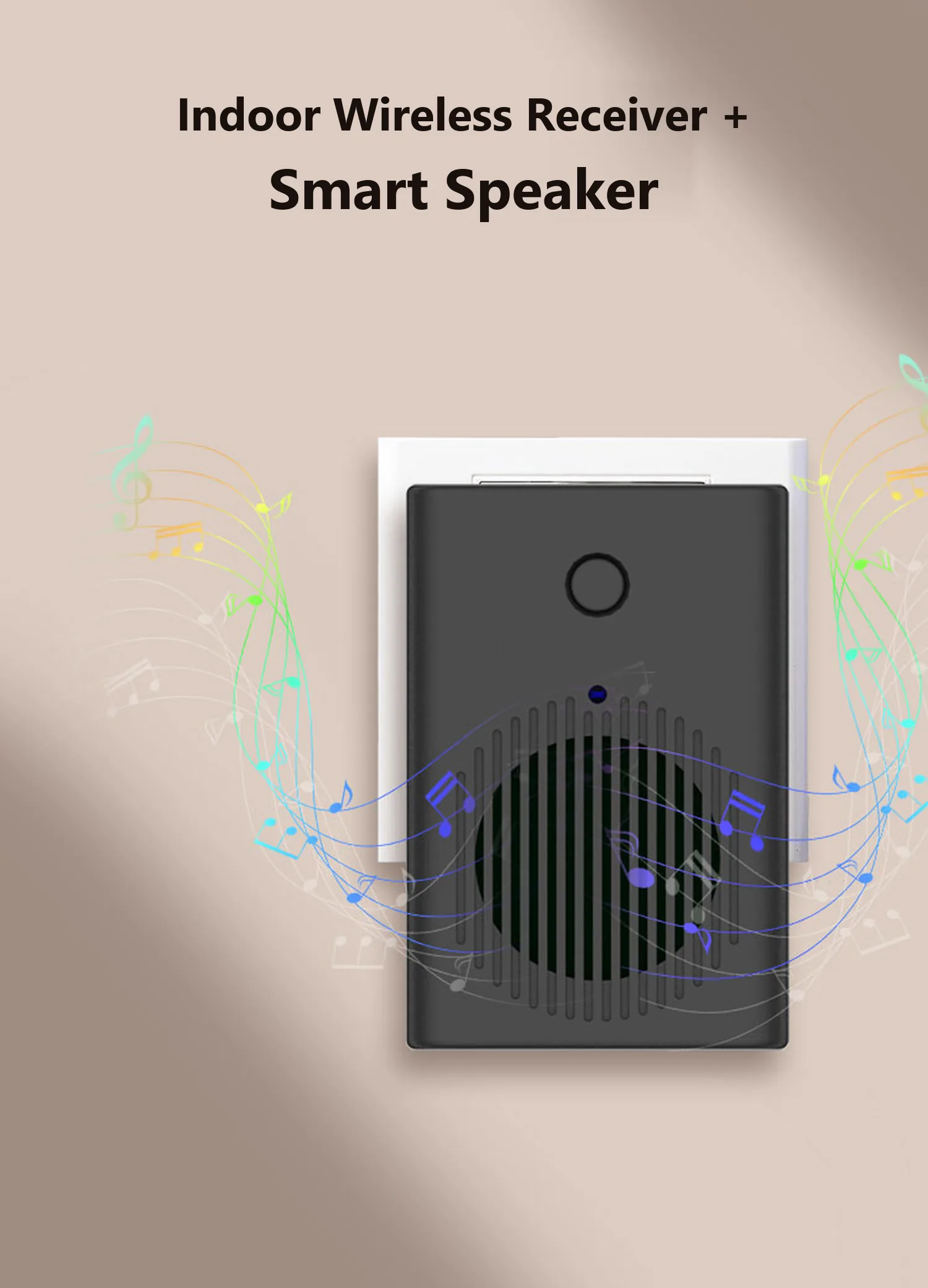

A Receiver and Speaker in the Box
The indoor unit is a wireless receiver with a speaker, not a bare buzzer — it rings clearly and sits on a shelf or plugs into a socket.

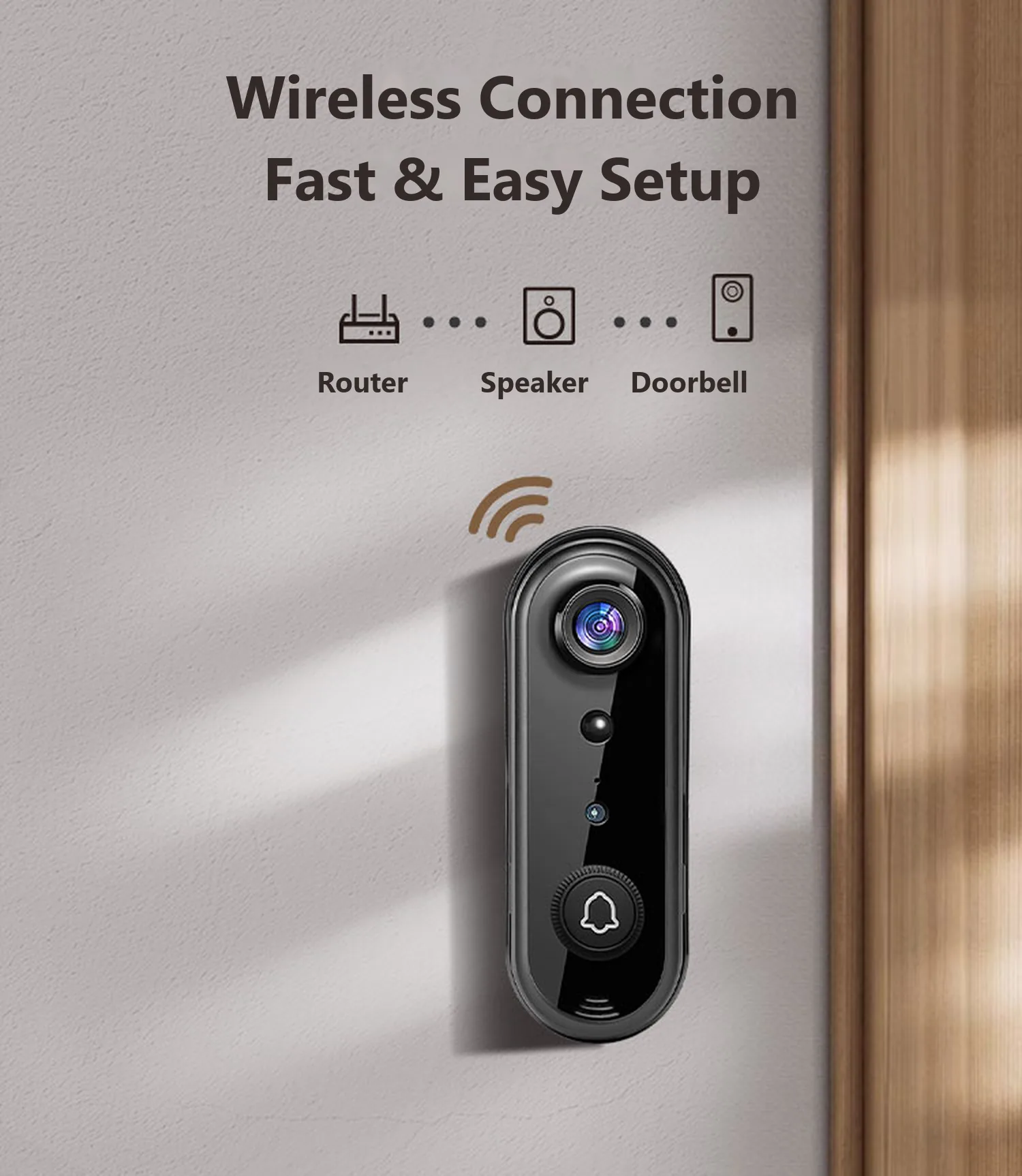

Wireless Setup in Minutes
2.4 GHz WiFi, one scan, one name. Nothing to wire, nothing to drill beyond the mount.

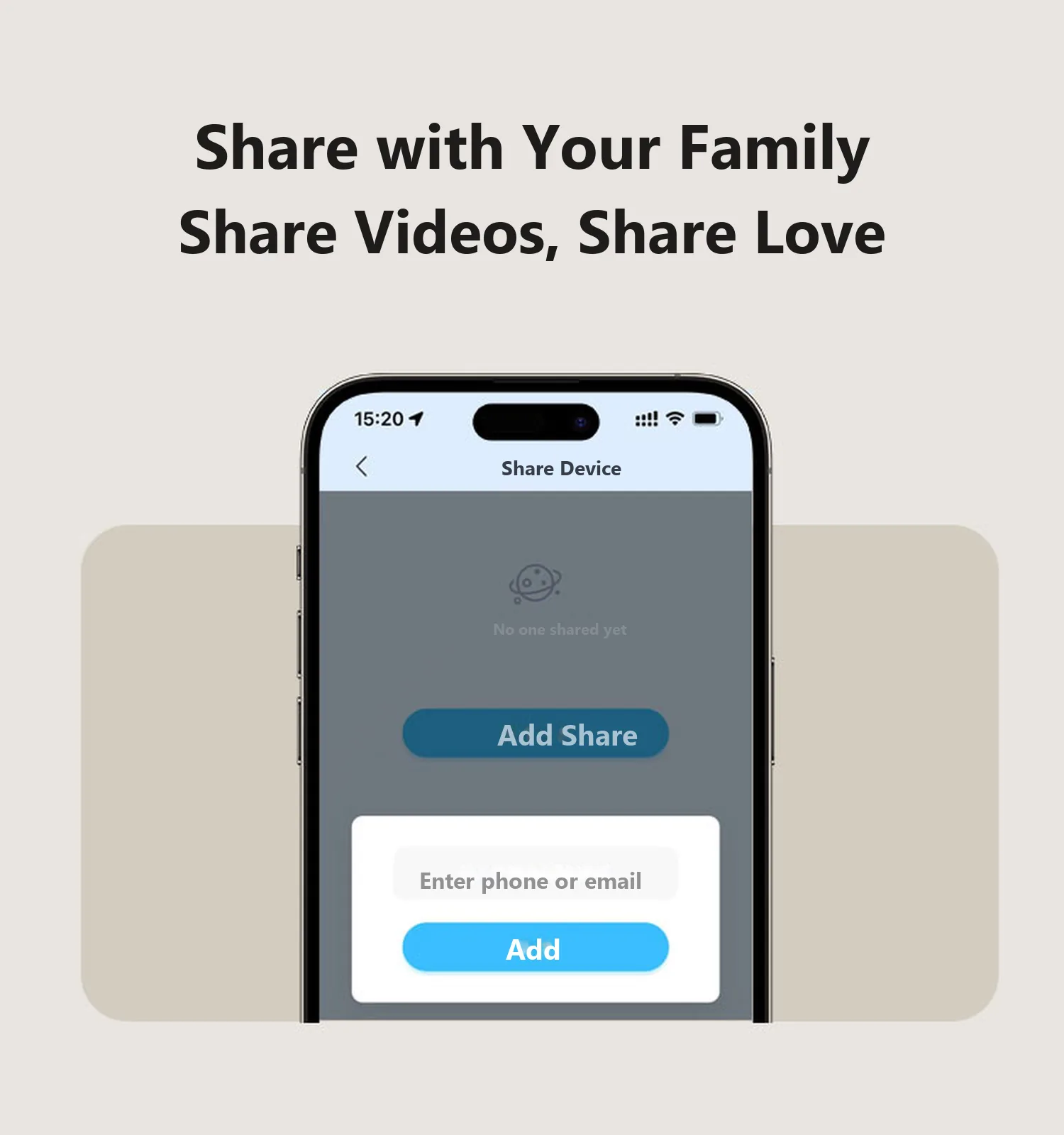

Sharing and Storage
Each family member gets their own access; clips go to optional cloud or a microSD card up to 128 GB, and old clips are overwritten as the card fills.

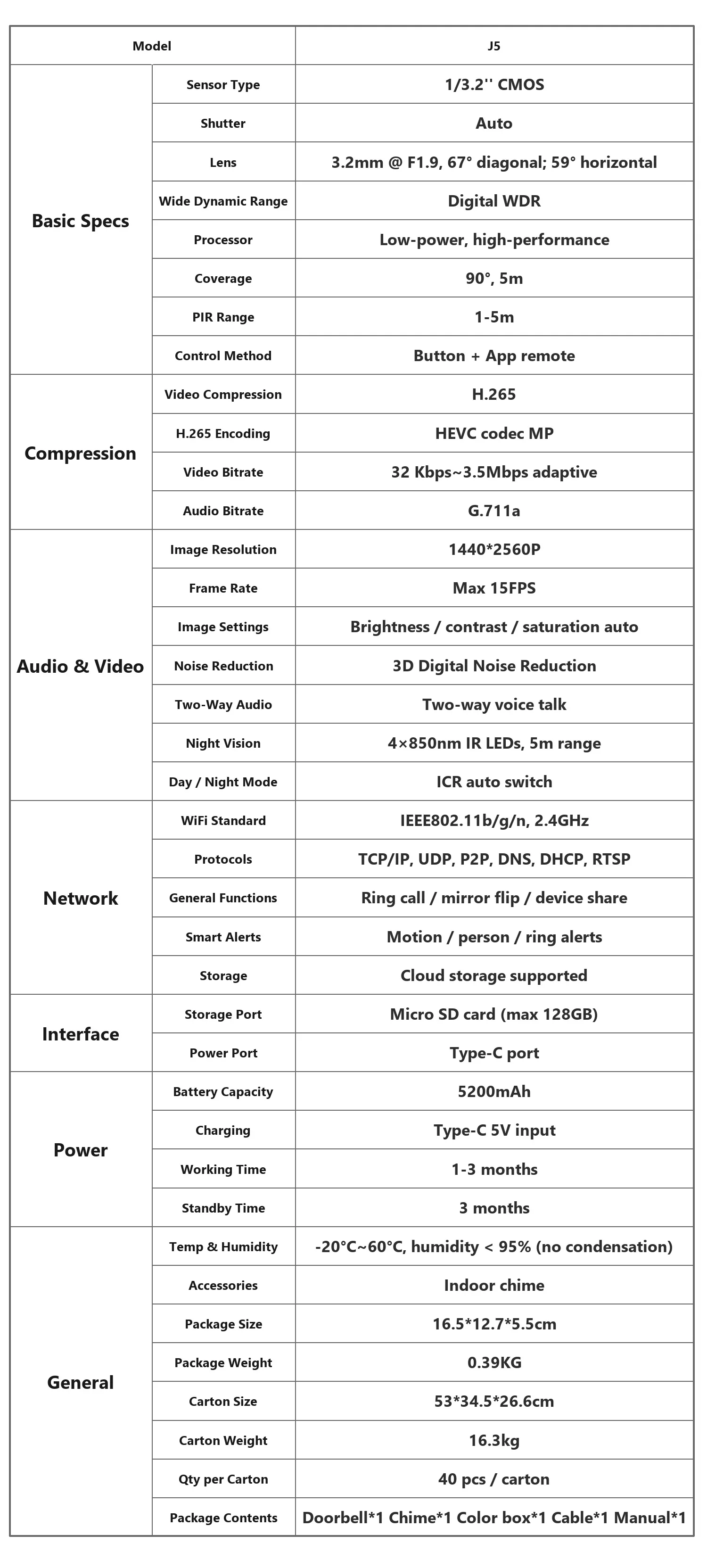

Full Technical Specification
Camera, video, audio, network, interface, power and packing data for the J5, exactly as confirmed by the factory.
Frequently Asked Questions
Why is the J5 video portrait?
Because a doorway is vertical. A portrait sensor shows a visitor from head to toe and the parcel at their feet in the same frame, which a landscape crop cannot do.
What resolution does it record?
2K — 1440 × 2560, up to 15 fps, portrait orientation.
Is the indoor receiver a chime or a speaker?
Both. The wireless receiver in the box rings for a visitor and carries the speaker, so it can be heard through a closed door.
Does it need a subscription?
No. Live view, alerts and local recording on a microSD card up to 128 GB all work without one; cloud storage is optional.
How long does the battery last?
5200 mAh gives 1–3 months of typical use and up to 3 months standby.
Can I fit it without drilling?
Yes — adhesive mount, or two screws if the buyer prefers. No wiring either way.
Do you offer OEM and private label?
Yes. Logo, packaging, manual and colour from 300 units per model — send the target market and we quote.
Portrait 2K doorbell vs a landscape doorbell vs a peephole viewer
| Feature | J5 (portrait 2K) | Landscape doorbell | Peephole viewer |
|---|---|---|---|
| Orientation | Portrait 1440 × 2560 | Landscape 16:9 | Optical |
| Sees a parcel on the step | Yes | Partly | No |
| Two-way call | Yes | Partly | No |
| Night vision | 4 IR LEDs | 2 IR LEDs | No |
| Indoor chime | Receiver + speaker | Partly | No |
| Phone access | Yes | Yes | No |
| Installation | Adhesive / screws | Adhesive / screws | Replace lens |
| Rental friendly | Yes | Yes | Yes |
Specifications
| Model | J5 |
|---|---|
| Resolution | 1440 × 2560 (2K portrait), up to 15 fps |
| Camera | 1/3.2" CMOS, 3.2 mm @ F1.9 — 67° diagonal / 59° horizontal lens |
| Coverage | 90° scene coverage, up to 5 m |
| Frame rate | Up to 15 fps |
| Compression | H.265 (HEVC main profile), 32 Kbps–3.5 Mbps adaptive |
| Night vision | 4 × 850 nm IR LEDs, up to 5 m, automatic ICR switch |
| Motion detection | PIR sensor, 1–5 m range |
| Audio | Two-way voice, G.711a compression, 3D noise reduction |
| Smart alarms | Motion, person detected, doorbell press |
| WiFi | IEEE 802.11 b/g/n — 2.4 GHz only |
| Protocols | TCP/IP, UDP, P2P, DNS, DHCP, RTSP |
| Storage | Micro SD card up to 128 GB, optional cloud storage |
| Power | 5200 mAh rechargeable battery, USB Type-C 5 V input |
| Battery life | 1–3 months typical use, up to 3 months standby |
| App & sharing | iOS / Android app, device sharing, mirror flip |
| Operating temperature | −20 °C to 60 °C, RH < 95% |
| Frame | Vertical — head to toe plus the doorstep |
| Receiver | Wireless indoor receiver with speaker, included |
| Best for | Doors where parcels are left, and buyers who want the doorstep covered |
| MOQ | 50 units per model — mixed models and mixed cartons welcome |
| Lead time | Up to 1,000 units ship now; over 1,000 units in 7 days |
| OEM / ODM | From 300 units per model — logo, packaging, manual and colour |
| Certificates | CE, RoHS, FCC |
| Ships from | Shenzhen, China |
Packing & Freight
| Boxed unit weight | 0.39 kg |
|---|---|
| Colour box size | 165 × 127 × 55 mm |
| Units per carton | 40 pcs |
| Carton size | 530 × 345 × 266 mm |
| Carton gross weight | 16.3 kg |

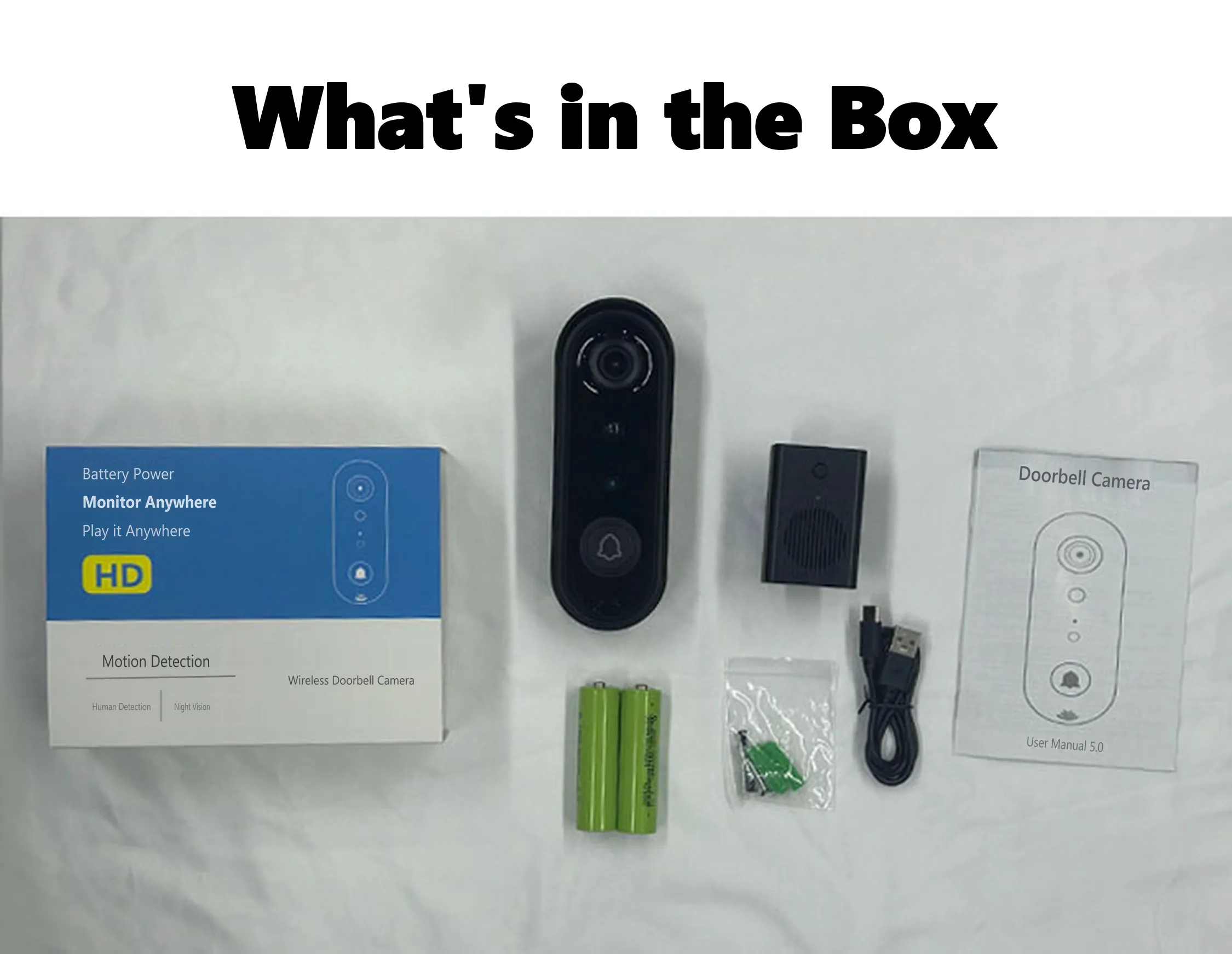

What's in the Box (Plug options: US / EU / UK)
- Video doorbell
- Indoor chime
- Mounting kit
- Type-C charging cable
- Screw kit
- User manual
- Retail packaging
Compare with other video doorbells
Where the J5 fits in the range
The J5 is the model for the argument every buyer understands in one picture: parcels. A portrait frame shows the visitor and what is on the step, which is exactly the job a doorstep camera is bought to do.
Keep it as the flagship of the doorbell line. Where a customer compares on resolution and mAh alone, the J4 is the easier sale; where they have had a parcel stolen, the J5 is the one they take.
