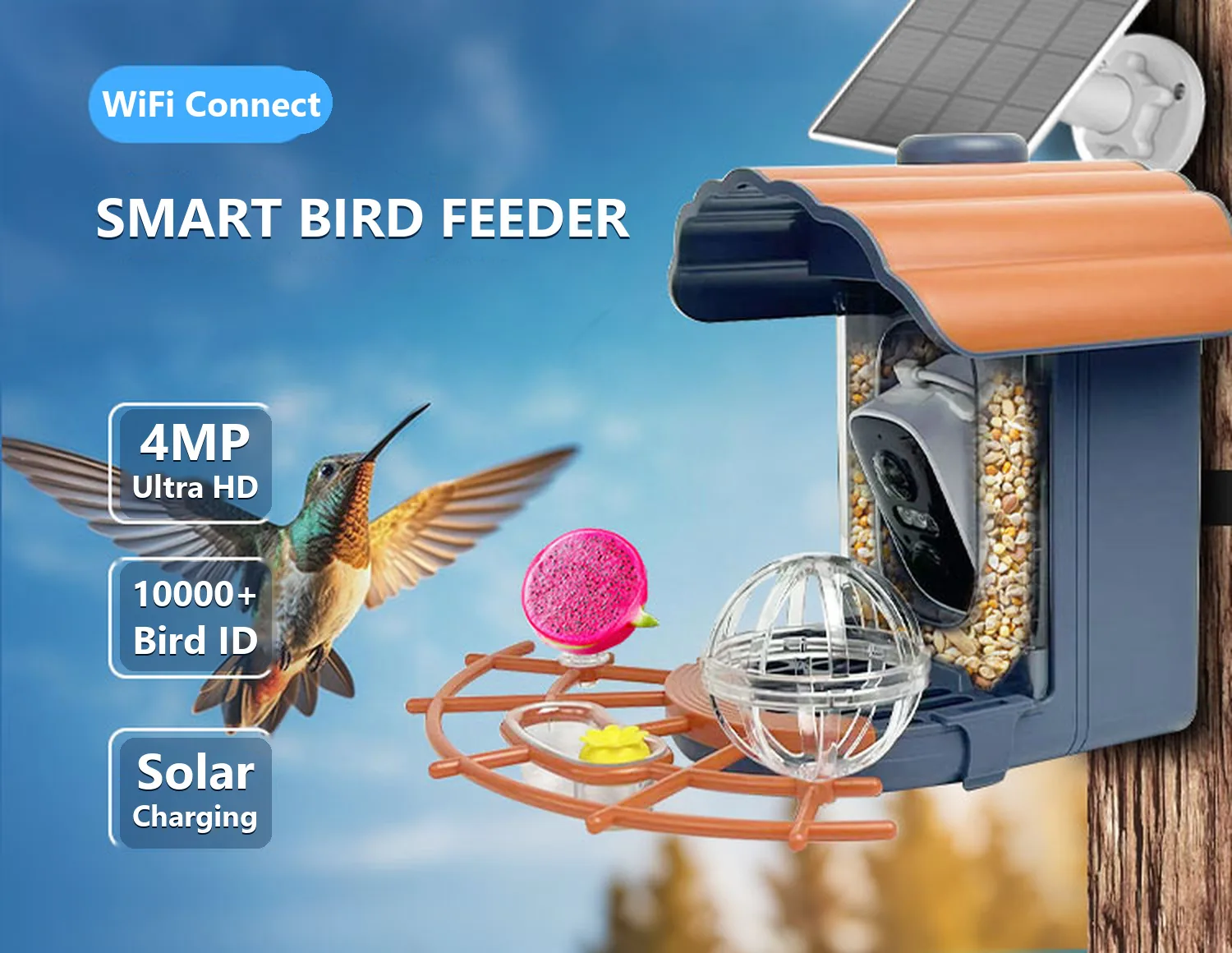

A20S-C1 Smart Bird Feeder Camera with AI Bird ID and Squirrel Spray — 4 MP, Solar, IP65
- Squirrel spray, not just a siren — a guard net plus a short water burst and alarm deal with the animal once, and the clip goes to the phone.
- 4 MP 2560 × 1440, colour at night — 3 IR and 3 white LEDs, 2D/3D noise reduction and 2.8 mm wide-angle framing of the tray.
- AI bird ID with photo upload — 10,000+ species recognised live, or upload a photo later and let the app name it from the bird wiki.
- Solar panel in the box — 3 W panel and 5200 mAh battery, IP65 housing, −10 °C to 45 °C.
- Modern body, four colourways — a front door that opens for refills and a flat roof that sheds water instead of collecting it.
A Modern Feeder With a Camera in the Wall
Flat roof, straight body, front door. The A20S-C1 is the design that photographs well on a marketplace listing — and the door makes refilling a one-hand job instead of lifting a roof full of snow.
4 MP, With Colour After Dark
2560 × 1440 on the main stream, 2D/3D noise reduction and three white LEDs alongside three IR emitters. Dusk and dawn visits keep their colour instead of turning into grey silhouettes.

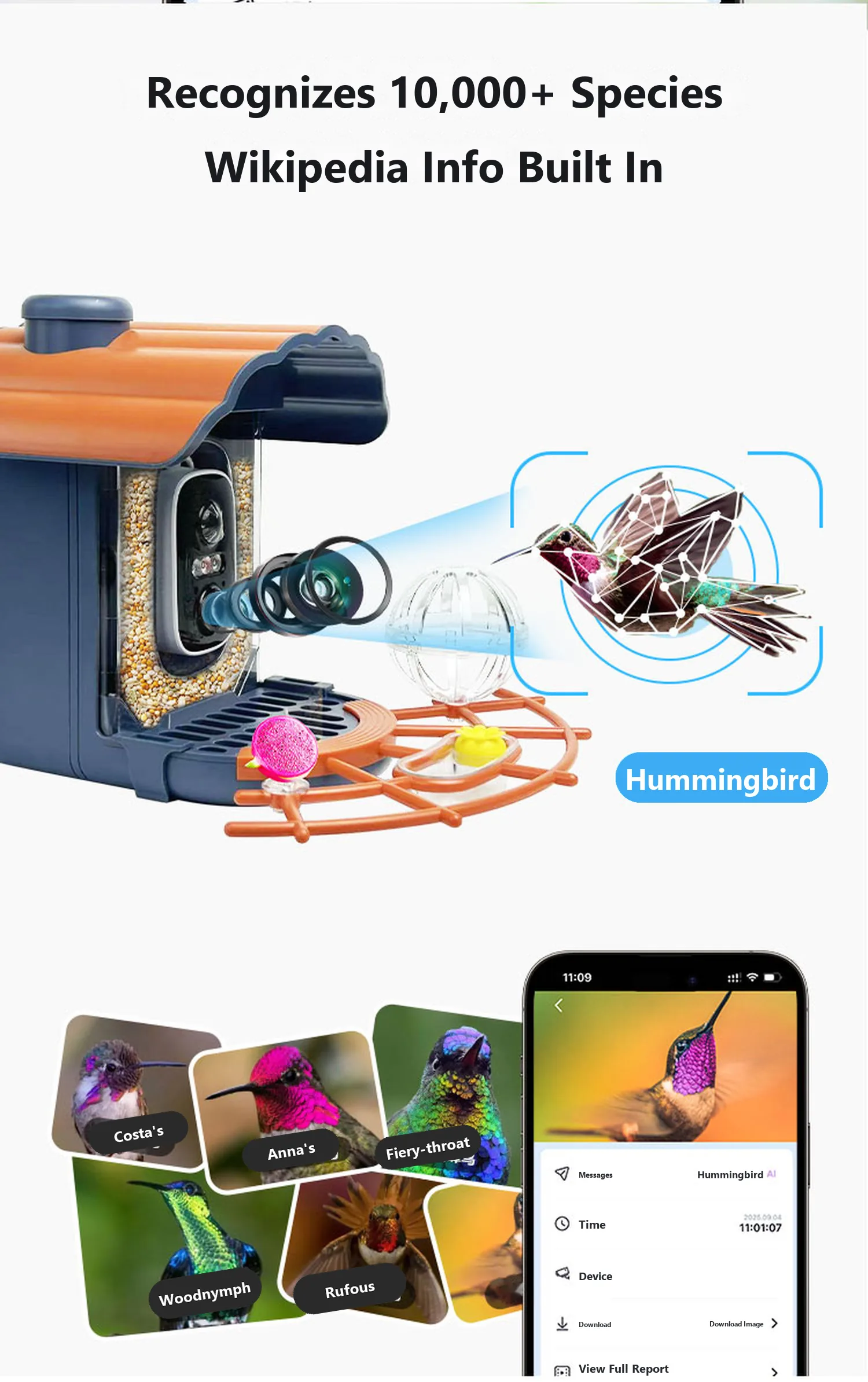

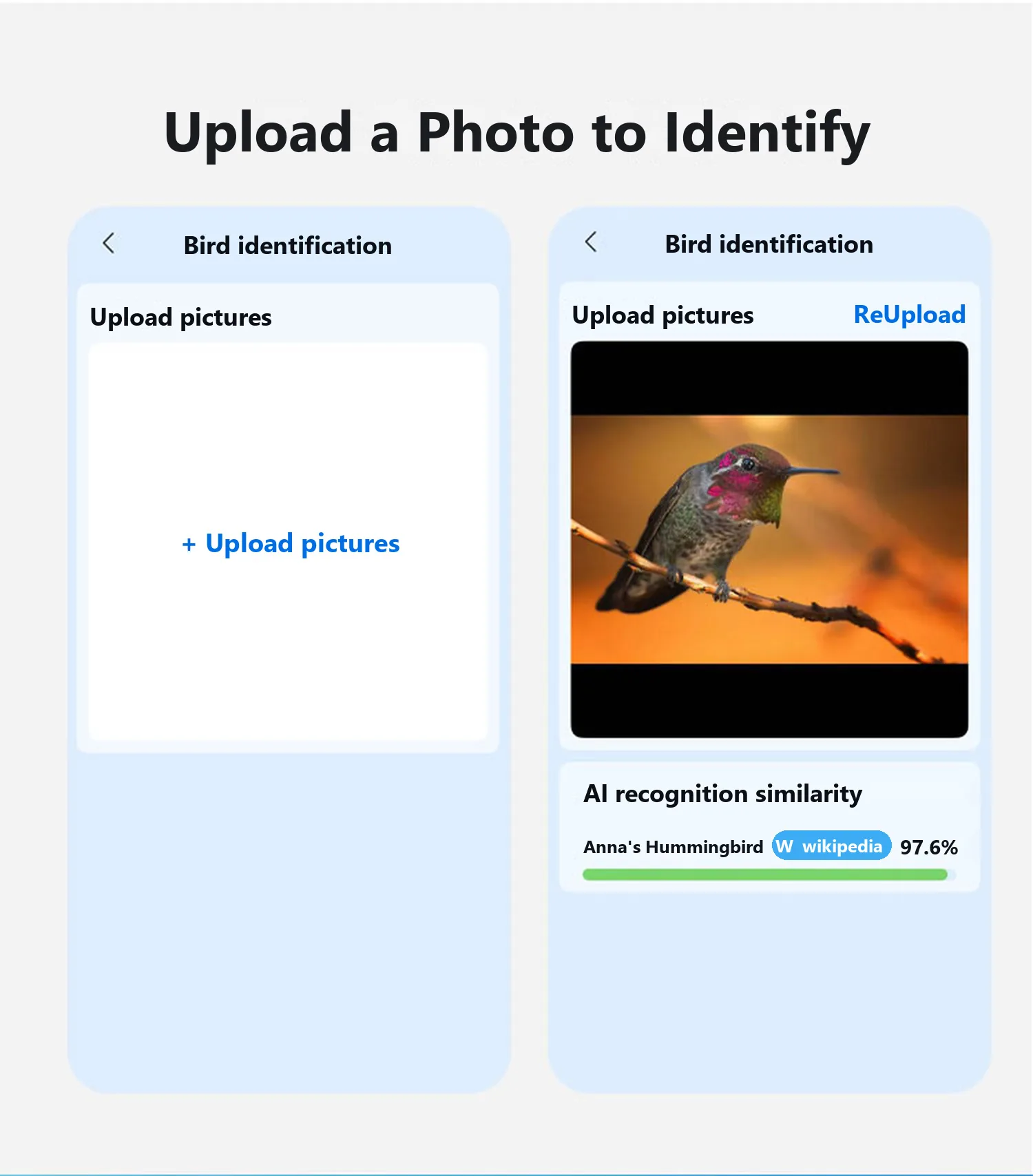

It Names the Bird, Live or From a Photo
10,000+ species are recognised in real time; if the bird got away, upload the photo and the app comes back with a name and a wiki entry. Alerts arrive already labelled.

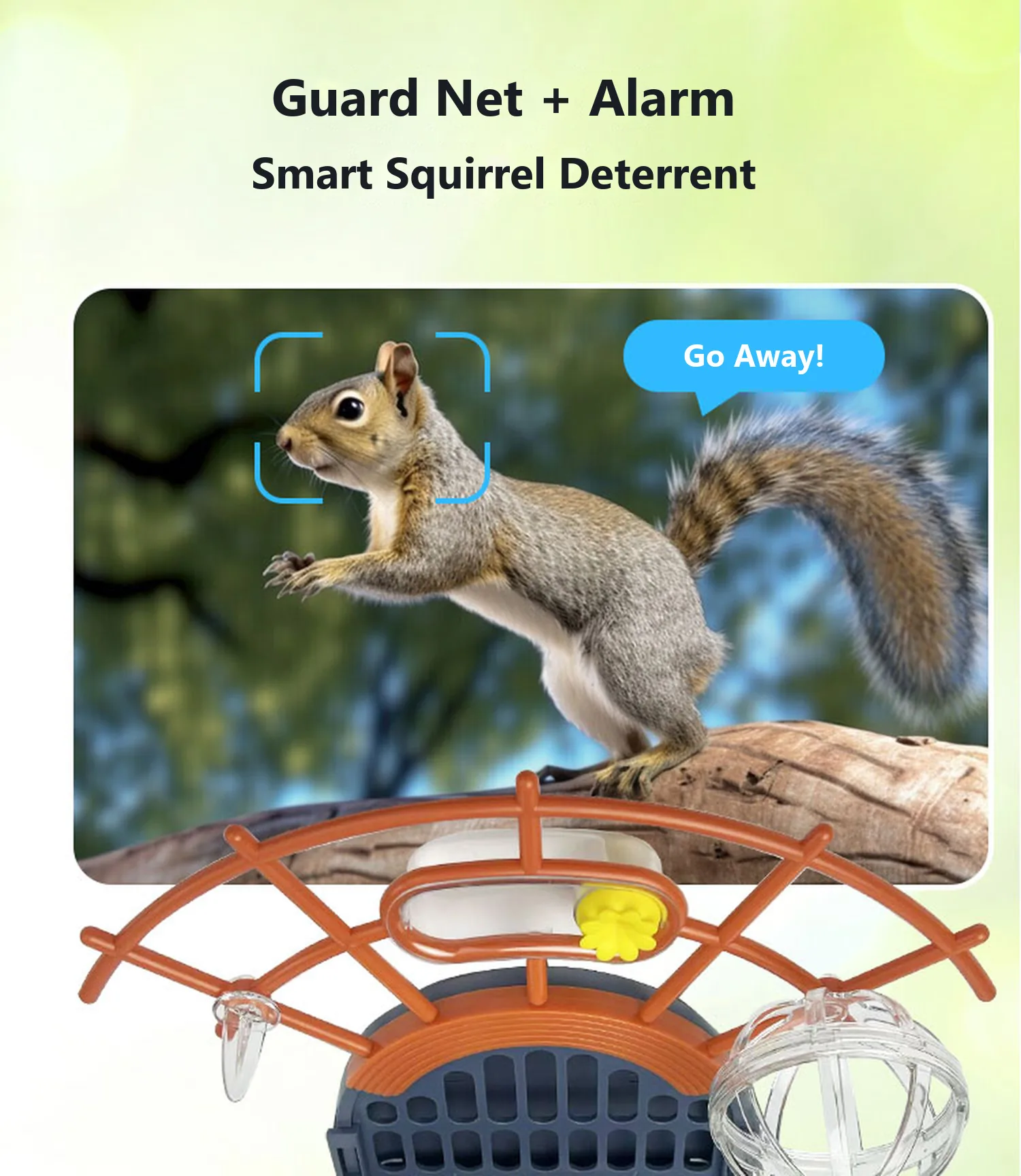

Spray, Net and Siren in One Deterrent
The guard net blocks the tray, the siren warns, and a short spray settles the argument. Every trigger is recorded, so the buyer sees the deterrent working rather than taking it on trust.

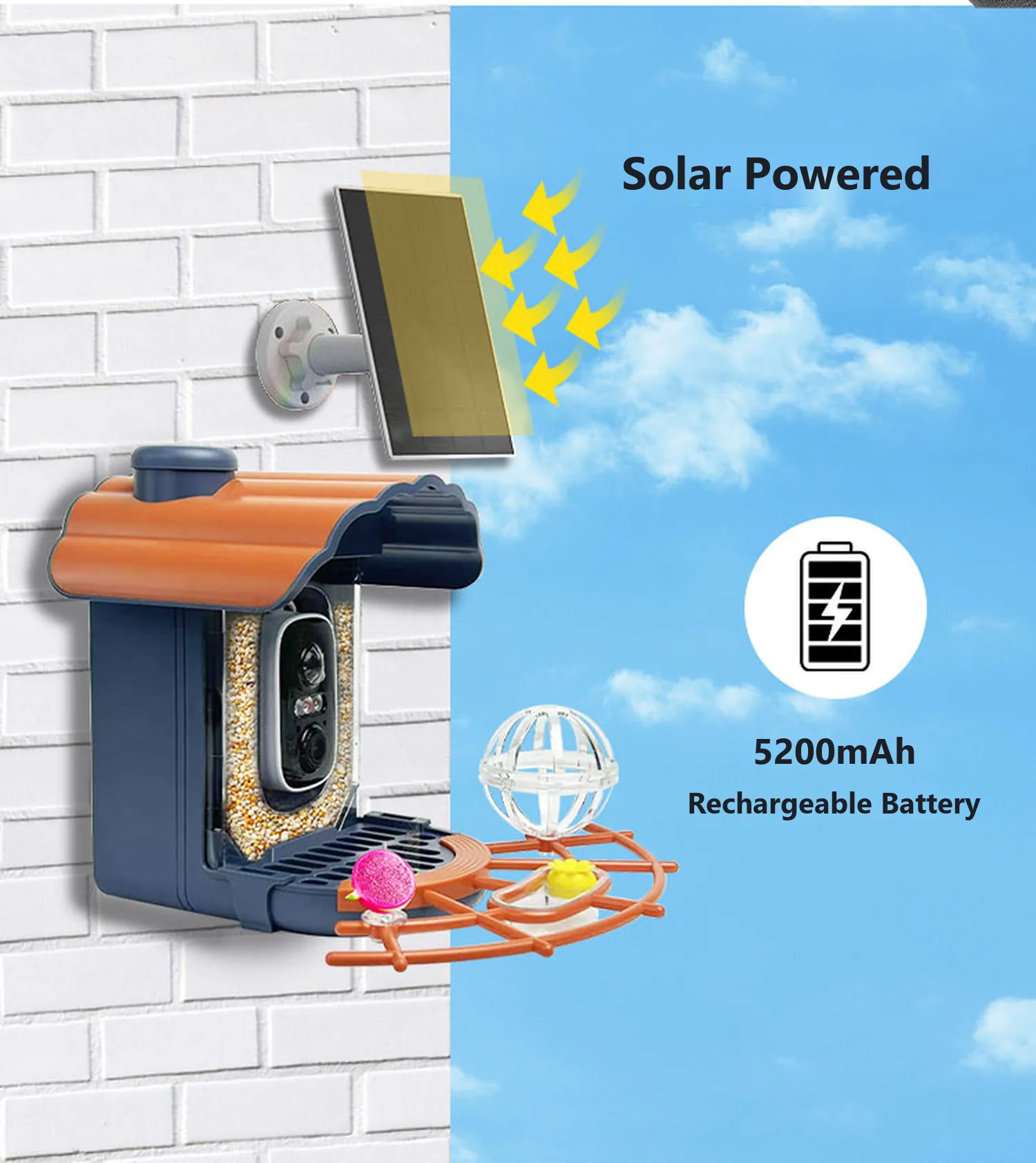

Solar Panel and 5200 mAh in the Box
A 3 W panel on a bracket plus a 5200 mAh 18650 pack. USB Type-C at DC 5 V 2 A is there for the shaded garden.

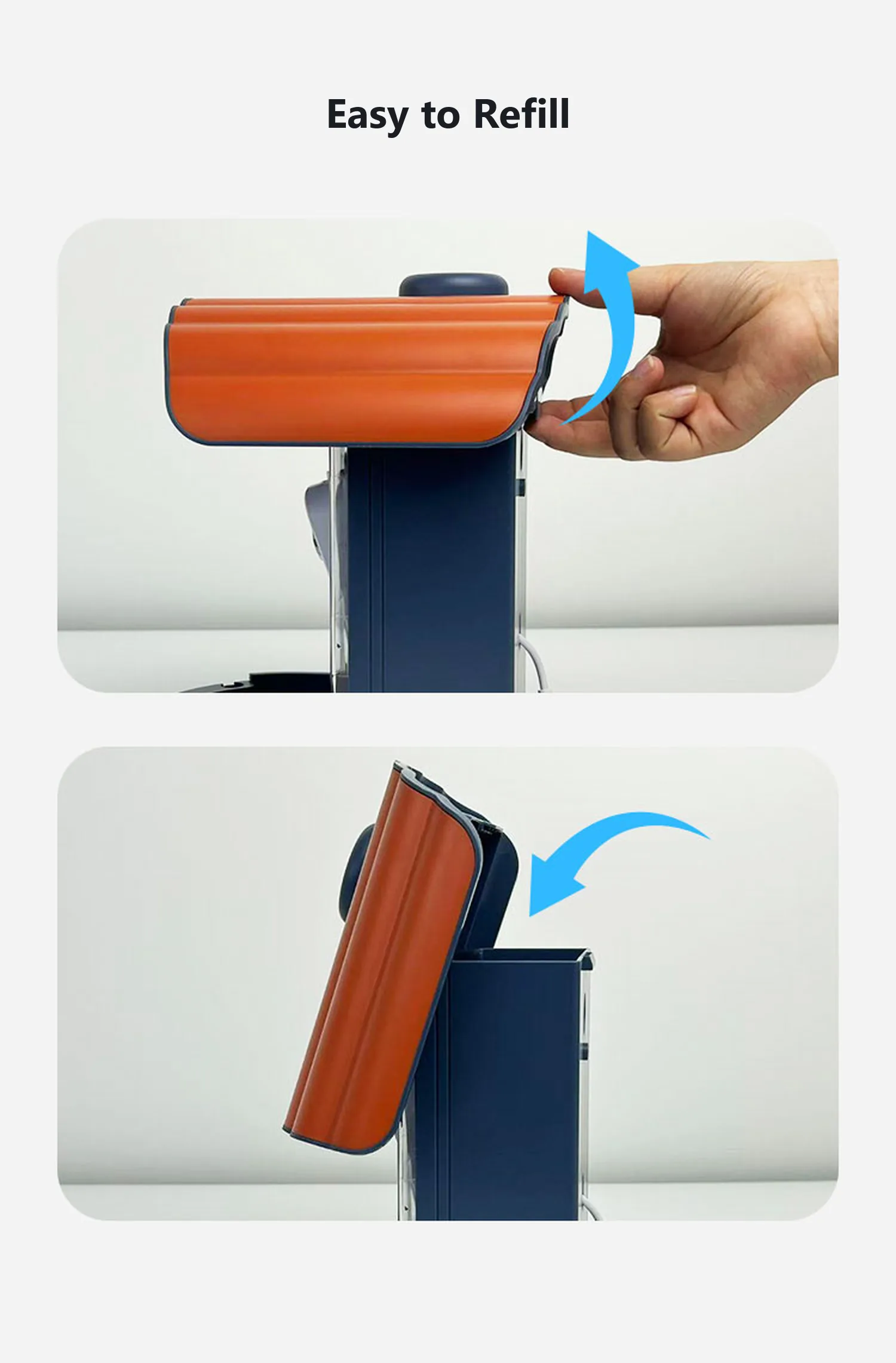

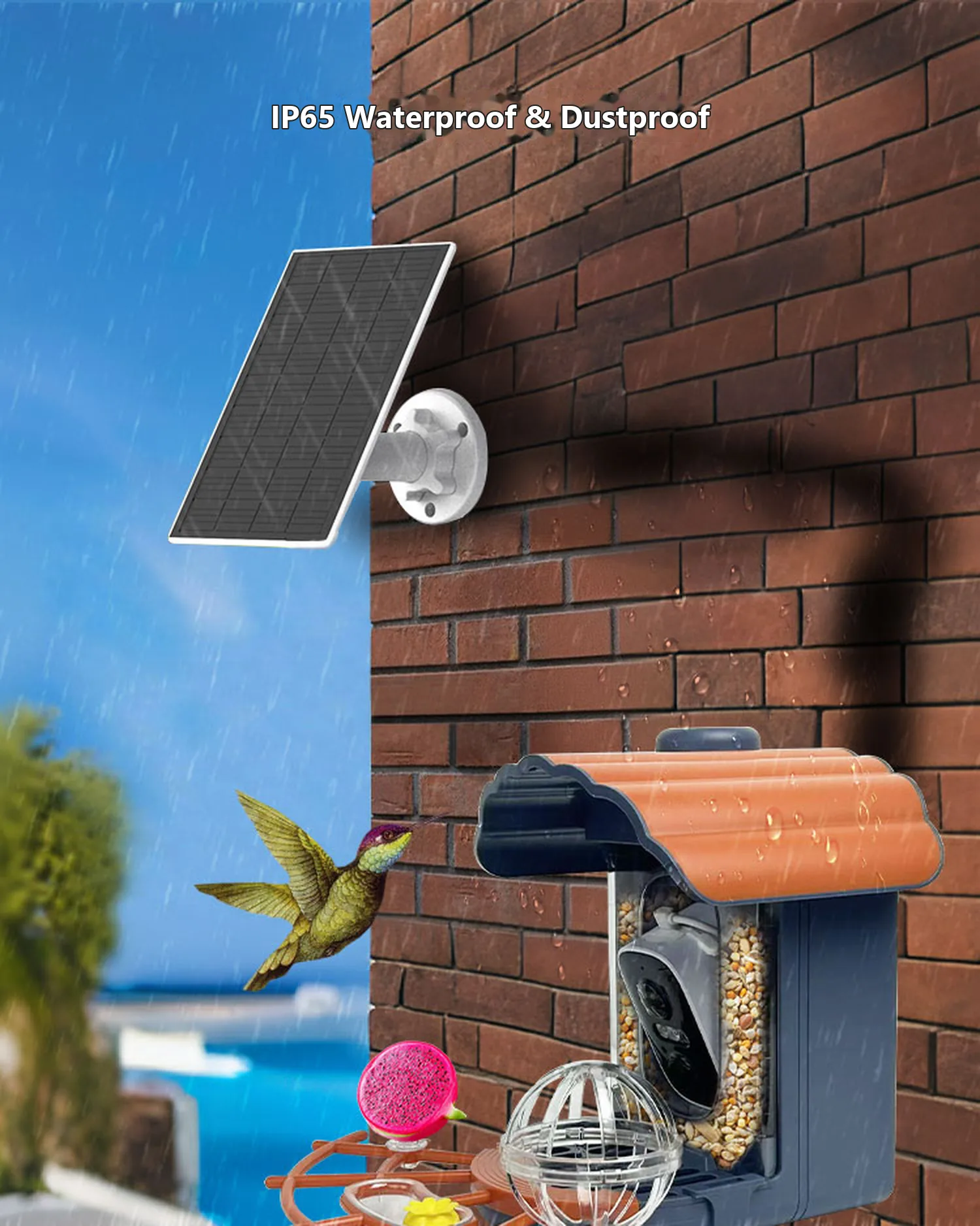

IP65, and a Door That Opens
Sealed to IP65 against rain and dust, rated −10 °C to 45 °C, with a front door on a hinge for seed refills without dismantling the mount.
Storage, Sharing and the App

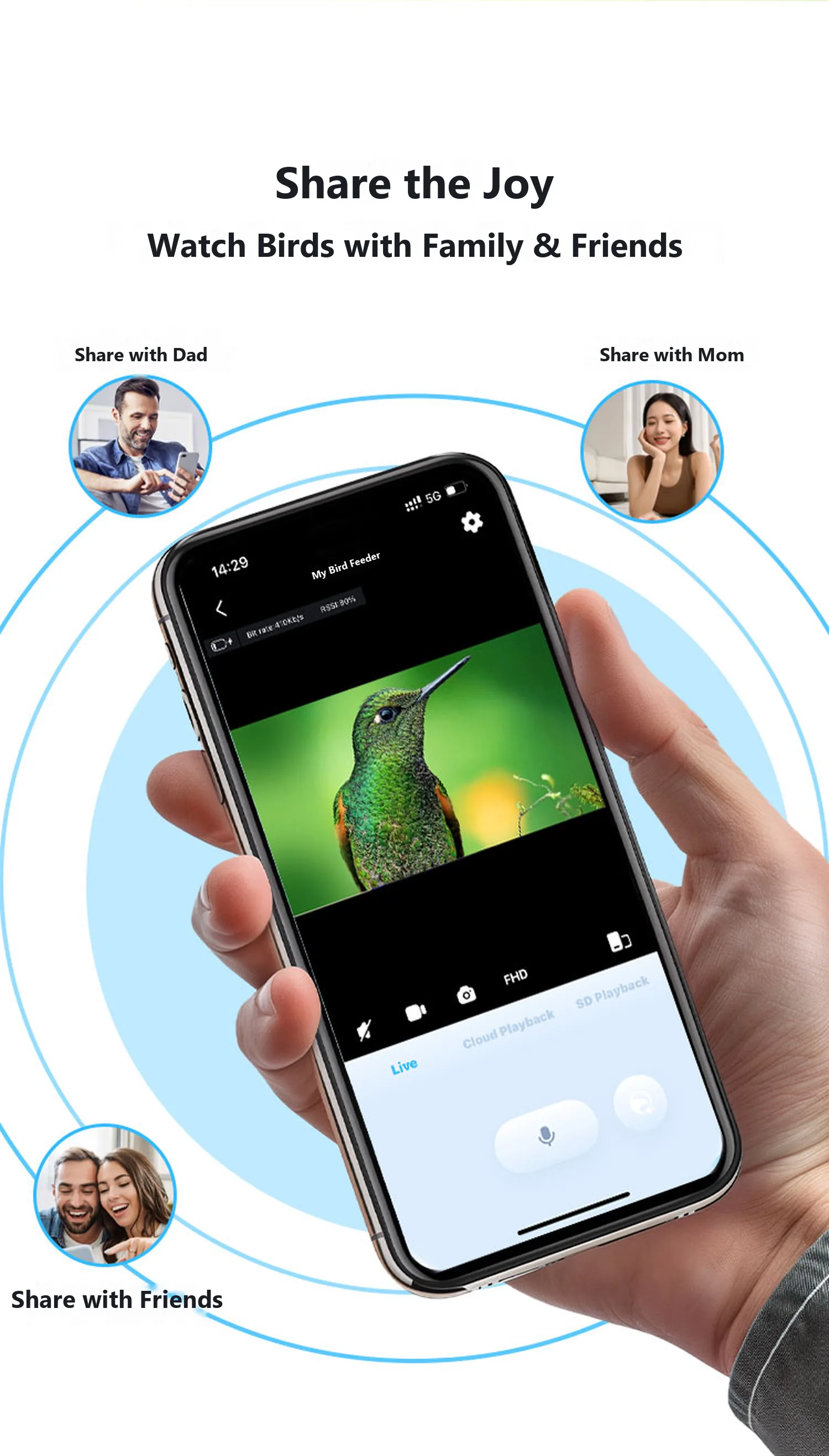

microSD up to 128 GB plus optional cloud, manual and alarm recording, and device sharing for the household — one feeder, several phones.

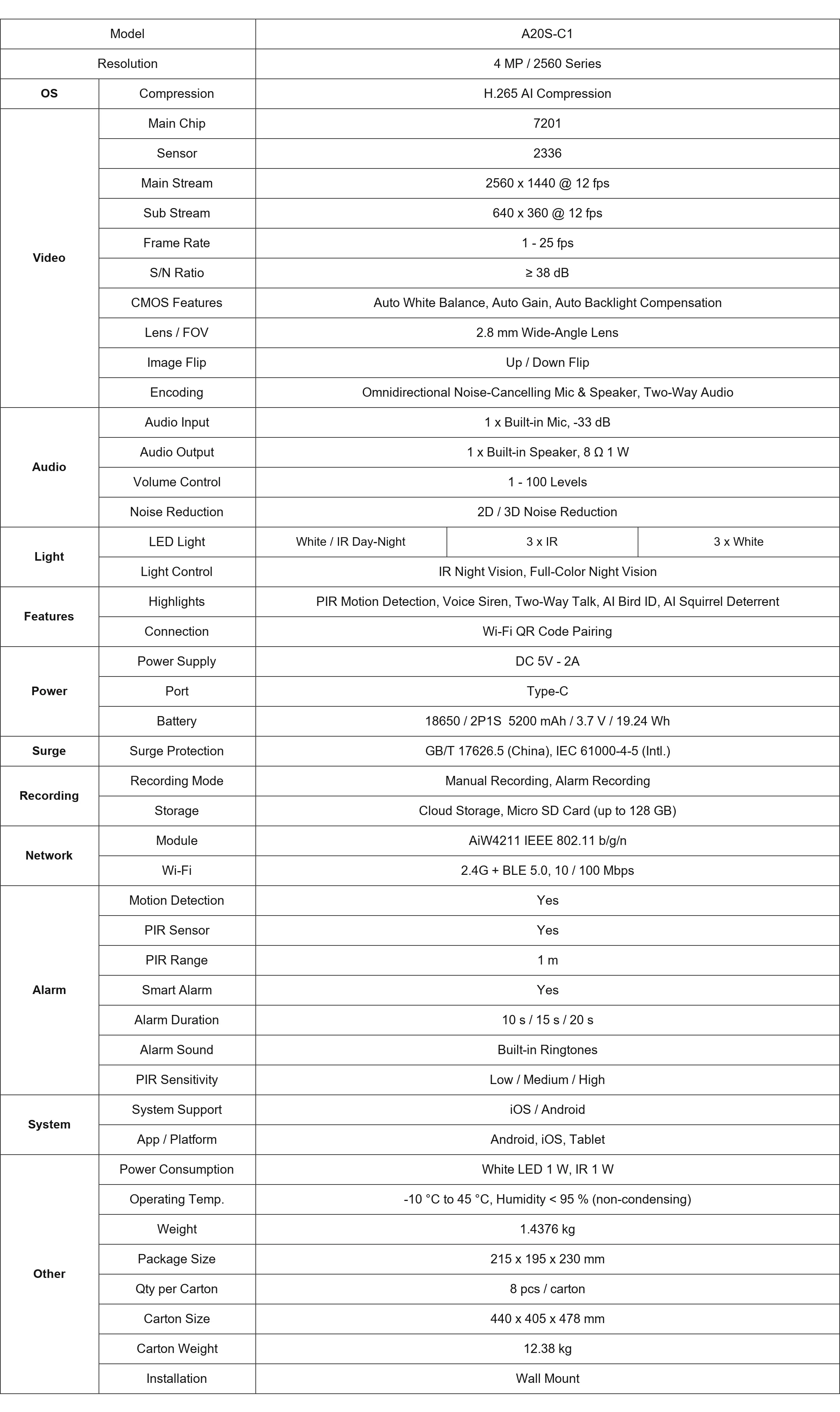

Full Technical Specification
Camera, video, audio, network, power, recording and packing data for the A20S-C1, exactly as confirmed by the factory spec sheet.
Frequently Asked Questions
What does the squirrel deterrent actually do?
It combines three things: a guard net that physically blocks the tray, a 10–20 s siren, and a short spray triggered by the 1 m PIR. Each event is recorded and pushed to the app.
Is the solar panel included?
Yes — a 3 W panel and wall bracket ship in the box with the 5200 mAh battery, plus the USB Type-C cable for charging in shade.
Which colours are available?
Four colourways on the same body: terracotta / navy, sage green / orange, blue and yellow. Mixed colour cartons can be quoted — ask for the colour ratio you need.
Can it identify a bird from a photo?
Yes. Live visits are recognised on the camera feed (10,000+ species); if you only have a photo, upload it and the app returns the species and its wiki entry.
What resolution and night vision?
2560 × 1440 (4 MP) main stream at 12 fps, sub stream 640 × 360, 3 × IR plus 3 × white LEDs for full-colour night vision, 2D/3D noise reduction.
Does it need mains power?
No. 5200 mAh 18650 battery plus the 3 W solar panel; charge over USB Type-C at DC 5 V 2 A if the panel is shaded.
Do you offer OEM and private label?
Yes. Logo, retail box, manual and colour from 300 units per model — send the target market and we quote.
A20S-B1 vs A20S-A3 vs A20S-C1
| Feature | A20S-B1 | A20S-A3 | A20S-C1 |
|---|---|---|---|
| Housing | Teal / white | Forest green / white | Terracotta / navy |
| Camera | 4 MP 2560 × 1440 | 4 MP 2560 × 1440 | 4 MP 2560 × 1440 |
| Solar panel | 3 W optional | 3 W included | 3 W included |
| AI bird ID | Yes | Yes | Yes |
| Photo upload ID | Yes | Yes | Yes |
| Squirrel deterrent | Siren + net | Siren + net | Spray + net + siren |
| Colour night vision | Yes | Yes | Yes |
| IP65 | Yes | Yes | Yes |
| Refilling | Lift the roof | Lift the roof | Front door |
| Size H×W×D (mm) | 320 × 180 × 130 | 200 × 135 × 180 | 225 × 140 × 180 |
| Carton weight | 10.69 kg | 11.53 kg | 12.38 kg |
Specifications
| Model | A20S-C1 |
|---|---|
| Resolution | 2560 × 1440 (4 MP), up to 25 fps |
| Camera | 1/2.9" CMOS, 4 MP, 2336 sensor, 2.8 mm wide-angle lens |
| Video | 2560 × 1440 @ 12 fps main stream, 640 × 360 @ 12 fps sub stream, 1–25 fps |
| Compression | H.265 AI, adaptive bitrate |
| Night vision | 3 × IR + 3 × white LED, full-colour night vision, automatic ICR day/night switch |
| Motion detection | PIR sensor, 1 m trigger range |
| Audio | Built-in mic (−33 dB) + 8 Ω 1 W speaker, two-way talk, G.711a, 2D/3D noise reduction |
| WiFi | AIW4211, IEEE 802.11 b/g/n — 2.4 GHz + BLE 5.0 |
| Storage | Micro SD card up to 128 GB, optional cloud storage |
| Power | 18650 / 2P1S 5200 mAh (19.24 Wh), DC 5 V 2 A, USB Type-C |
| Alarm | PIR siren 10 / 15 / 20 s, built-in ringtones, low–medium–high sensitivity |
| App | iOS / Android, device sharing, manual and alarm recording |
| Weatherproof | IP65 — rain, snow and frost |
| Operating temperature | −10 °C to 45 °C, RH < 95% (non-condensing) |
| AI | 10,000+ bird species identification, bird wiki, photo upload ID, squirrel deterrent |
| Size (H × W × D) | 225 × 140 × 180 mm |
| Weight | 1.44 kg with packaging |
| Best for | Premium Amazon and DTC listings that need a modern body and a visible deterrent |
| MOQ | 50 units per model — mixed models and mixed cartons welcome |
| Lead time | Up to 1,000 units ship now; over 1,000 units in 7 days |
| OEM / ODM | From 300 units per model — logo, retail box, manual and colour |
| Certificates | CE, RoHS, FCC |
| Ships from | Shenzhen, China |
Packing & Freight
| Boxed unit weight | 1.44 kg |
|---|---|
| Colour box size | 215 × 195 × 230 mm |
| Units per carton | 8 pcs |
| Carton size | 440 × 405 × 478 mm |
| Carton gross weight | 12.38 kg |

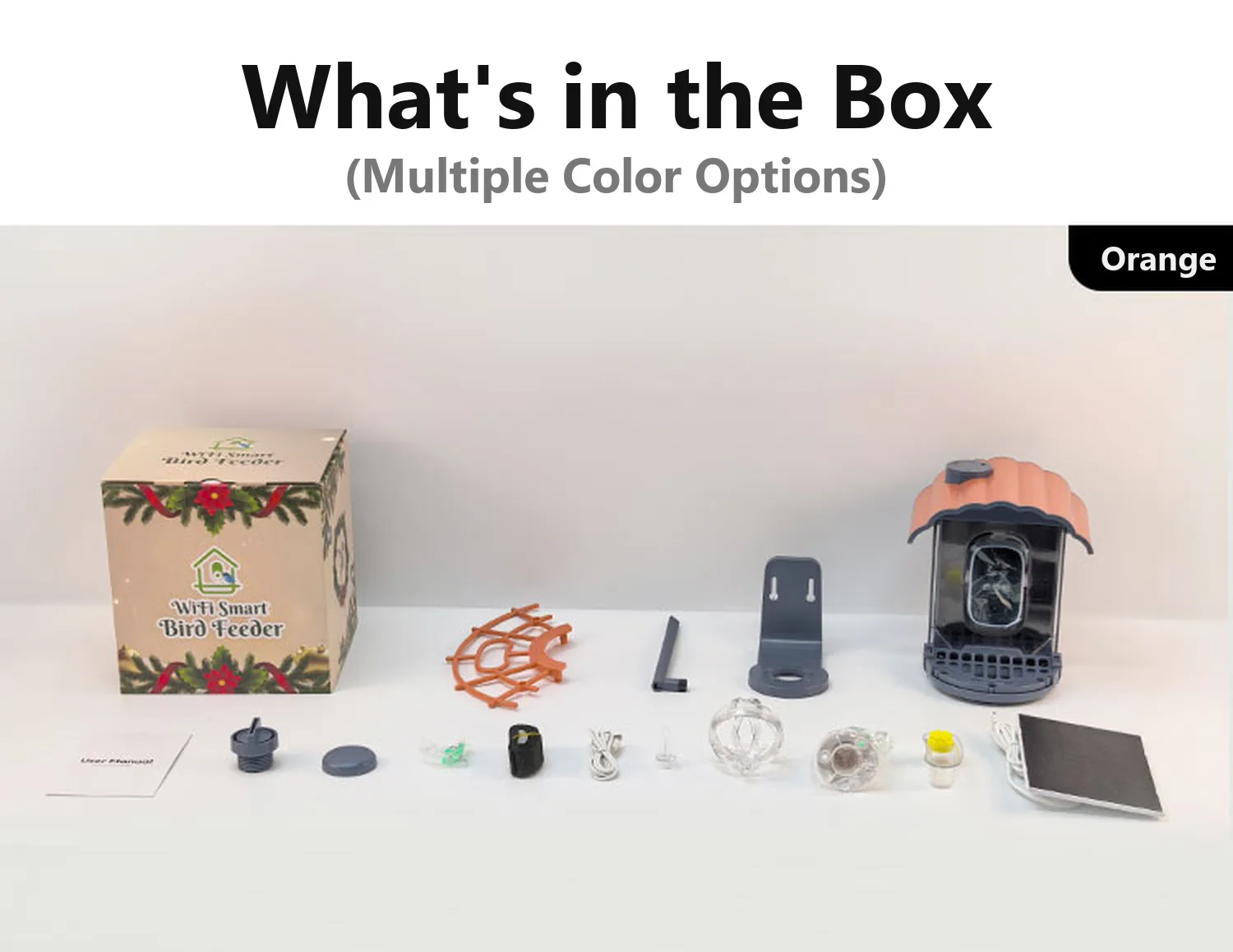

What's in the Box
- Bird feeder camera
- 3 W solar panel and bracket
- Feed tray and perch ring
- Clear suet ball holder
- Squirrel deterrent nozzle and reservoir
- USB Type-C cable
- Screw kit
- User manual
- Retail colour box
Compare with other bird feeder cameras
Where the A20S-C1 fits in the range
The A20S-C1 is the premium SKU of the A20S line: same 4 MP platform and app as the B1 and A3, in a modern body with the strongest deterrent — spray, net and siren — and four colourways for marketplace differentiation.
Use it as the hero listing on Amazon and DTC, and keep the A20S-B1 and A20S-A3 for garden retail and solar-first buyers. All three share one carton footprint (8 pcs, 440 × 405 × 478 mm), so a mixed container is easy to build.
