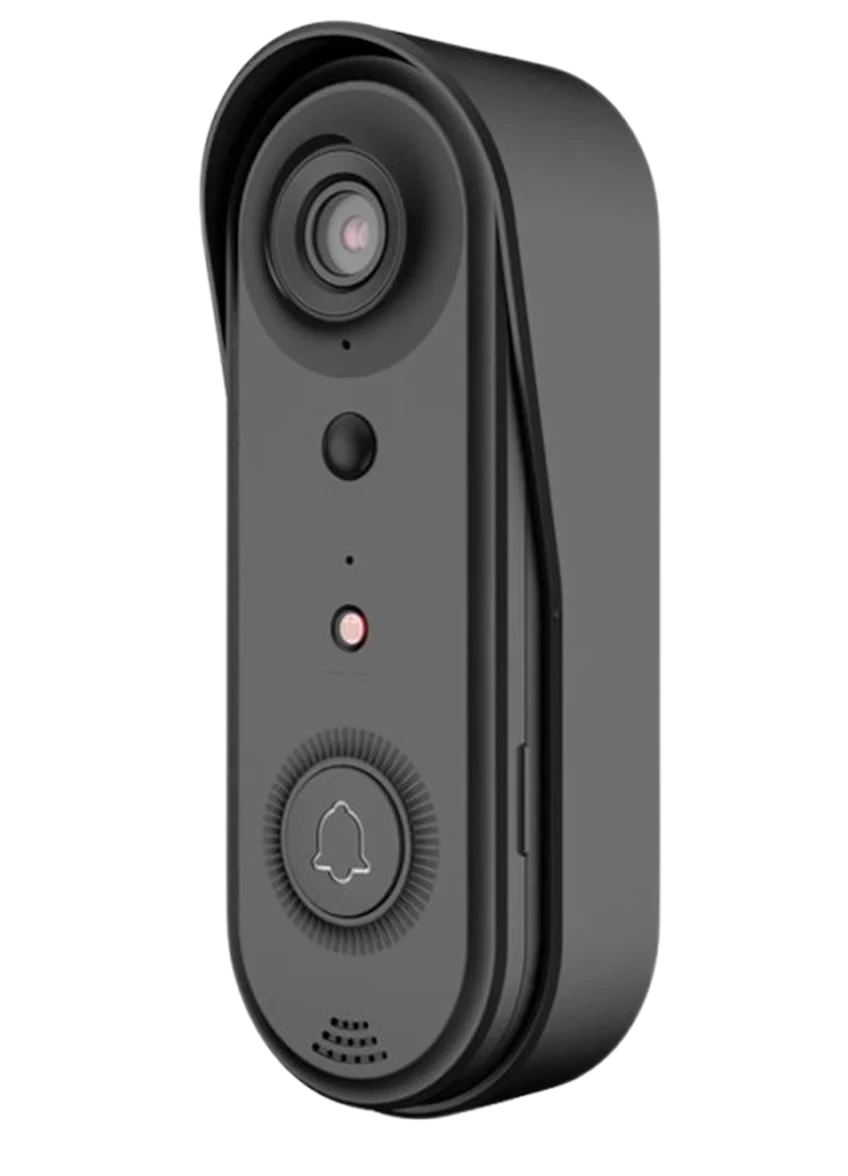

J1 Wireless Video Doorbell Camera with Chime — 1080p HD, Battery Powered, No Wiring
- No wiring, no electrician — a 5200 mAh rechargeable battery runs 1–3 months per charge and tops up over USB-C.
- Full HD 1080p, day and night — 1/3.2" CMOS sensor with 4 × 850 nm IR LEDs that see up to 5 m after dark.
- Two-way talk and instant alerts — PIR detection at 1–5 m pushes person, scene-change and ring alerts to the phone.

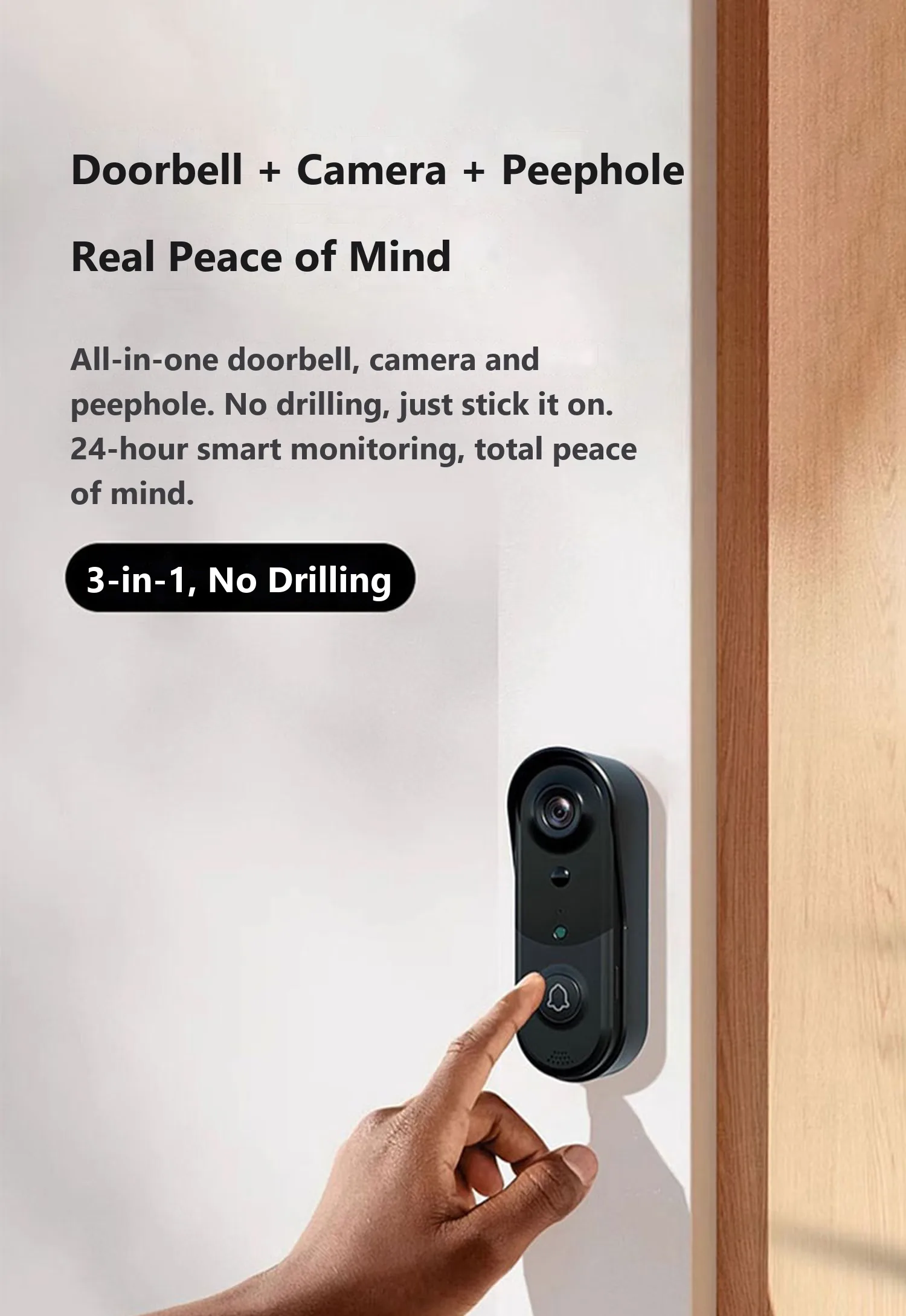

- Doorbell, chime and peephole camera in one — a wireless indoor chime ships in the box; the door unit doubles as a peephole viewer.
- Records without a subscription — microSD up to 128 GB or optional cloud, with device sharing for the whole family.

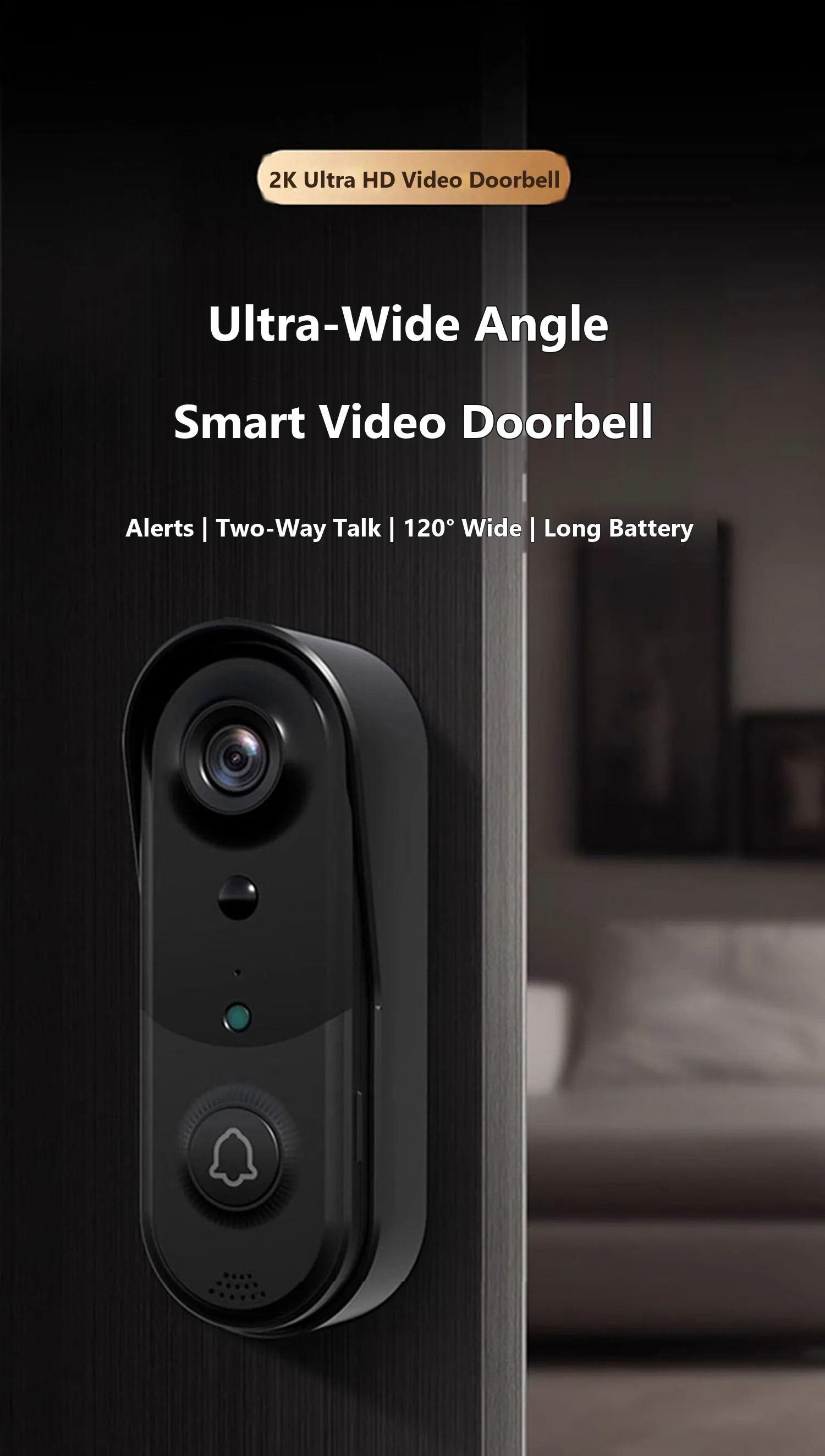

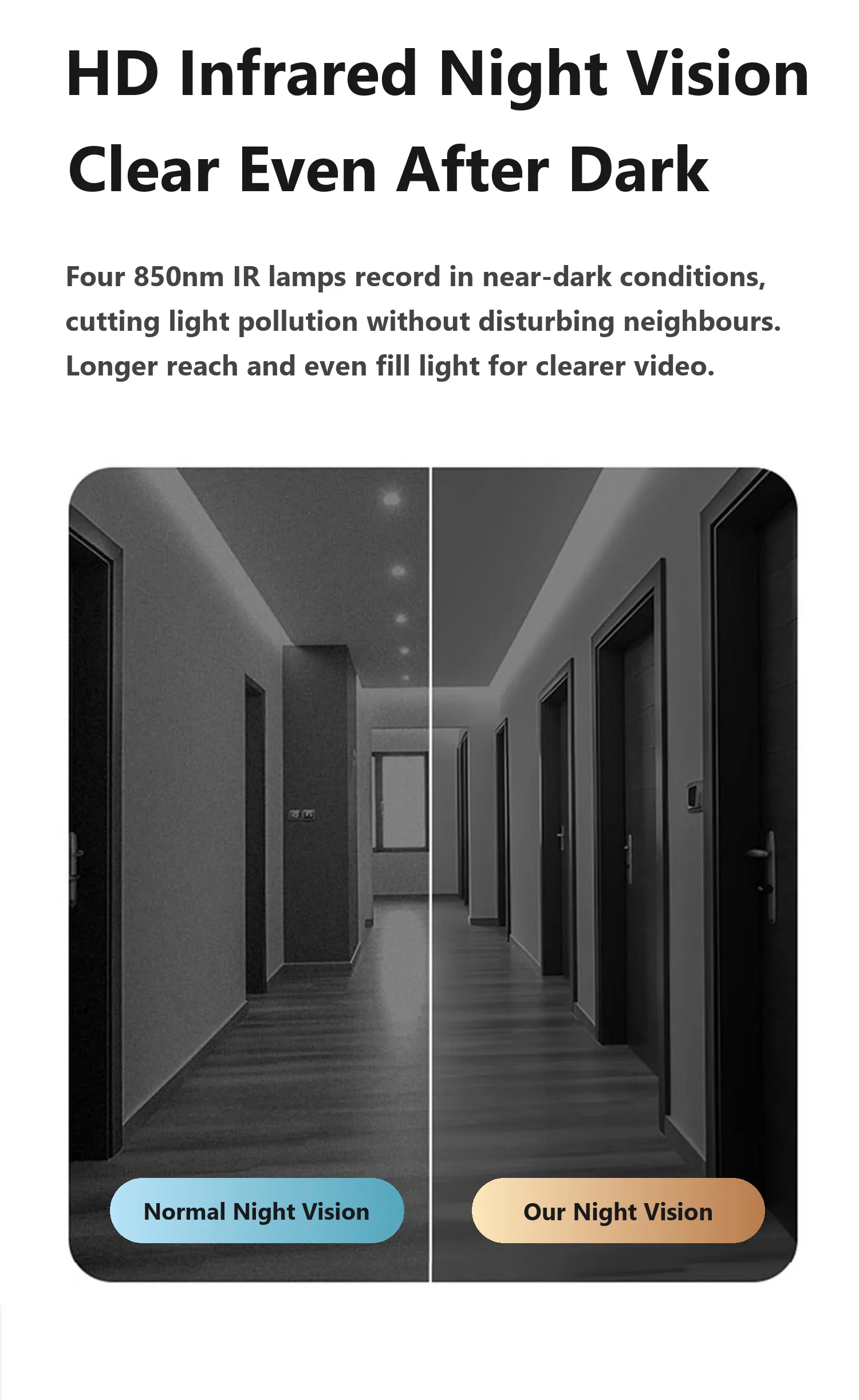

See Who's There — 1080p Day and Night
A 1/3.2" CMOS sensor pushes 1920 × 1080 at up to 15 fps, and four 850 nm IR LEDs take over after dark, so the doorway stays readable at 2 a.m. as well as at noon.
Answer the Door from Anywhere
Two-way voice over the app means you can talk to a courier, a neighbour or a family member without walking to the door — and without opening it.
Alerts That Land on Your Phone
The PIR sensor watches 1–5 m of the doorway. When someone stays, the app pushes a person-detected alert with a snapshot, so a five-minute check is enough.

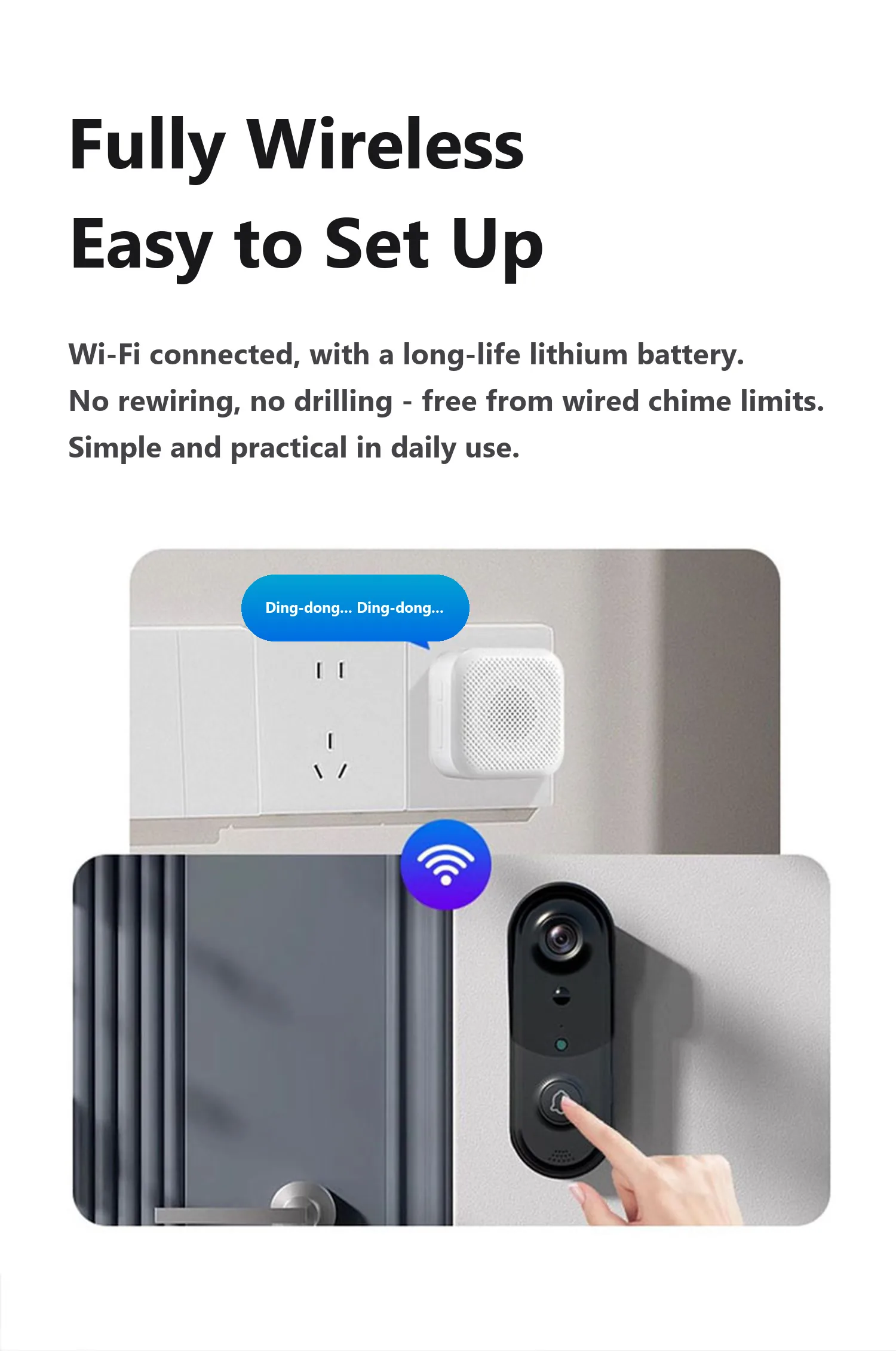

A Chime in the Box, Not on the Invoice
One wireless indoor chime ships with every unit and plugs into a normal socket — a visitor hears the bell inside the flat with nothing else to buy.

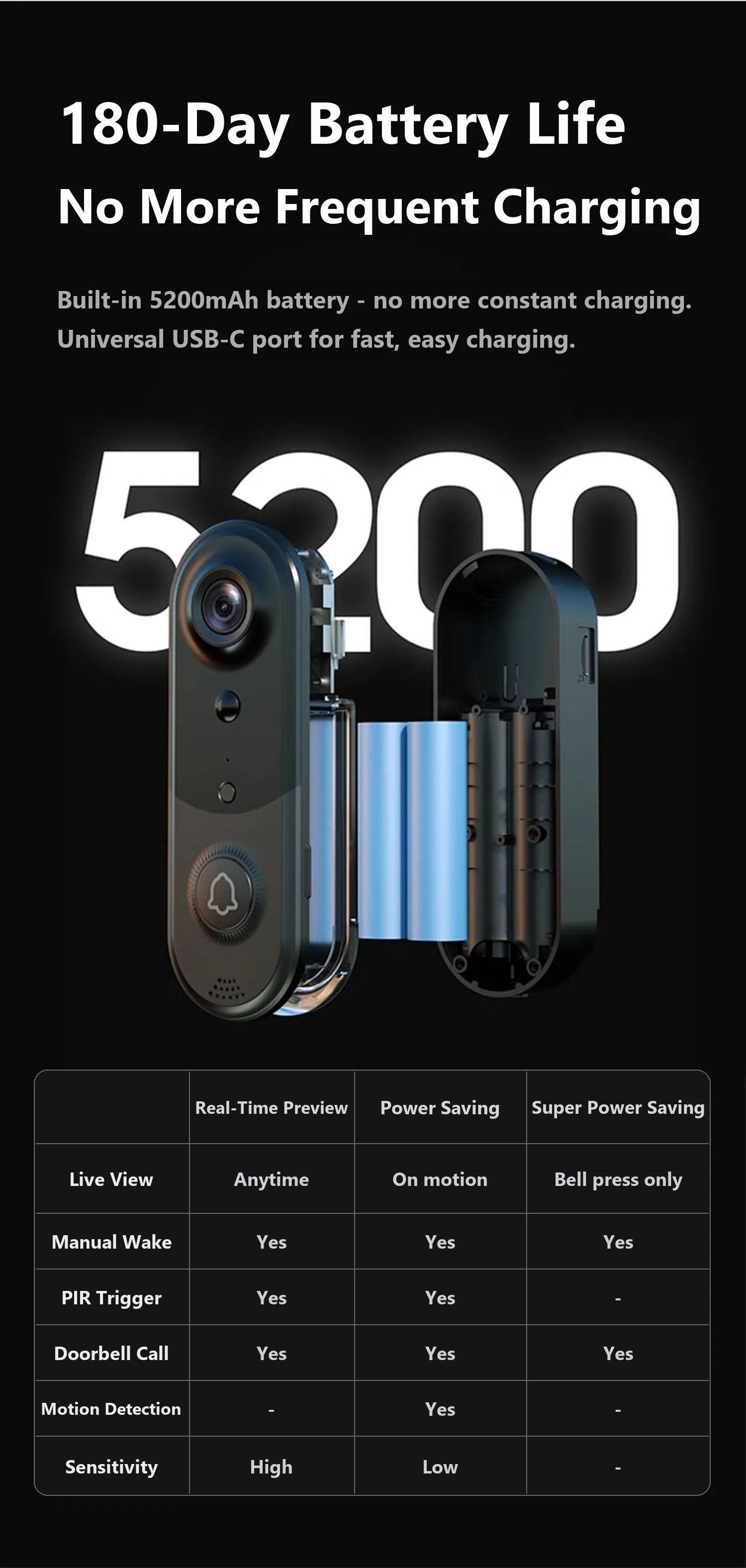

5200 mAh — Months, Not Weeks
The built-in cell is rated 1–3 months of typical use and up to 3 months on standby. Charging is USB-C, so a phone charger does the job.

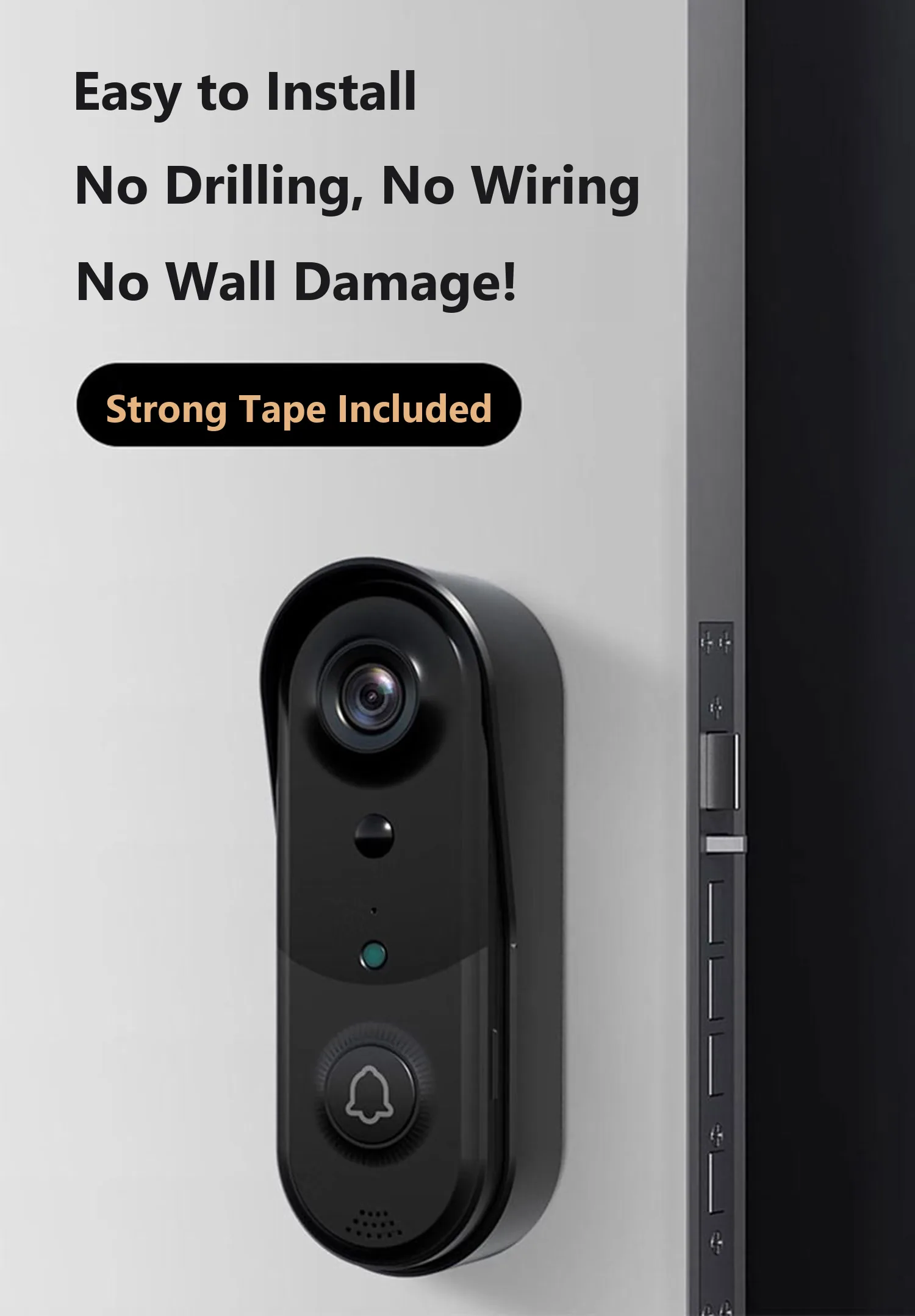

No Wiring, No Drilling, No Wall Damage
Adhesive mount or two screws — both are in the box. That is what makes the J1 sellable into rentals and apartments, where a wired doorbell is not an option.
Records Without a Subscription
A microSD card up to 128 GB records locally; cloud storage is optional. Buyers keep the footage even if they never open a cloud account.
Full Technical Specification
Camera, video, audio, network, power, recording and packing data for the J1, exactly as confirmed by the factory.
Frequently Asked Questions
Does the J1 need wiring or an electrician?
No. It runs on a built-in 5200 mAh rechargeable battery and talks to the router over 2.4 GHz WiFi. Fix it with the adhesive mount or two screws — nothing else to install.
Which WiFi band does it use?
2.4 GHz only (IEEE 802.11 b/g/n). It will not join a 5 GHz-only network, so make sure the router publishes a 2.4 GHz SSID at the door.
How long does one charge last?
1–3 months of typical use, up to 3 months standby. Real numbers depend on events per day, how often the live view is opened and how cold the door gets in winter.
Can I record without a cloud subscription?
Yes. A microSD card up to 128 GB records locally, and motion clips are pushed to the phone. Cloud storage is optional.
Does it replace a peephole?
It can. The unit is a doorbell, camera and peephole camera in one, so on a door that already has a peephole the doorbell takes over that job and you watch on the phone.
Is the indoor chime included?
Yes — one wireless indoor chime ships in the box and plugs into a normal socket.
Do you offer OEM and private label?
Yes. Logo, retail packaging, manual and colour from 300 units per model — send the target market and we quote.
Battery doorbell vs a wired doorbell vs a peephole viewer
| Feature | J1 | Wired doorbell | Peephole viewer |
|---|---|---|---|
| Live video on your phone | Yes | No | No |
| Two-way talk | Yes | Partly | No |
| Recording | Yes | No | No |
| Night vision | Yes | Partly | No |
| Indoor chime | Yes | Wired | No |
| Power | 5200 mAh battery | Wired | None |
| Installation | Adhesive / screws | Electrician | Replace lens |
| Rental friendly | Yes | No | Yes |

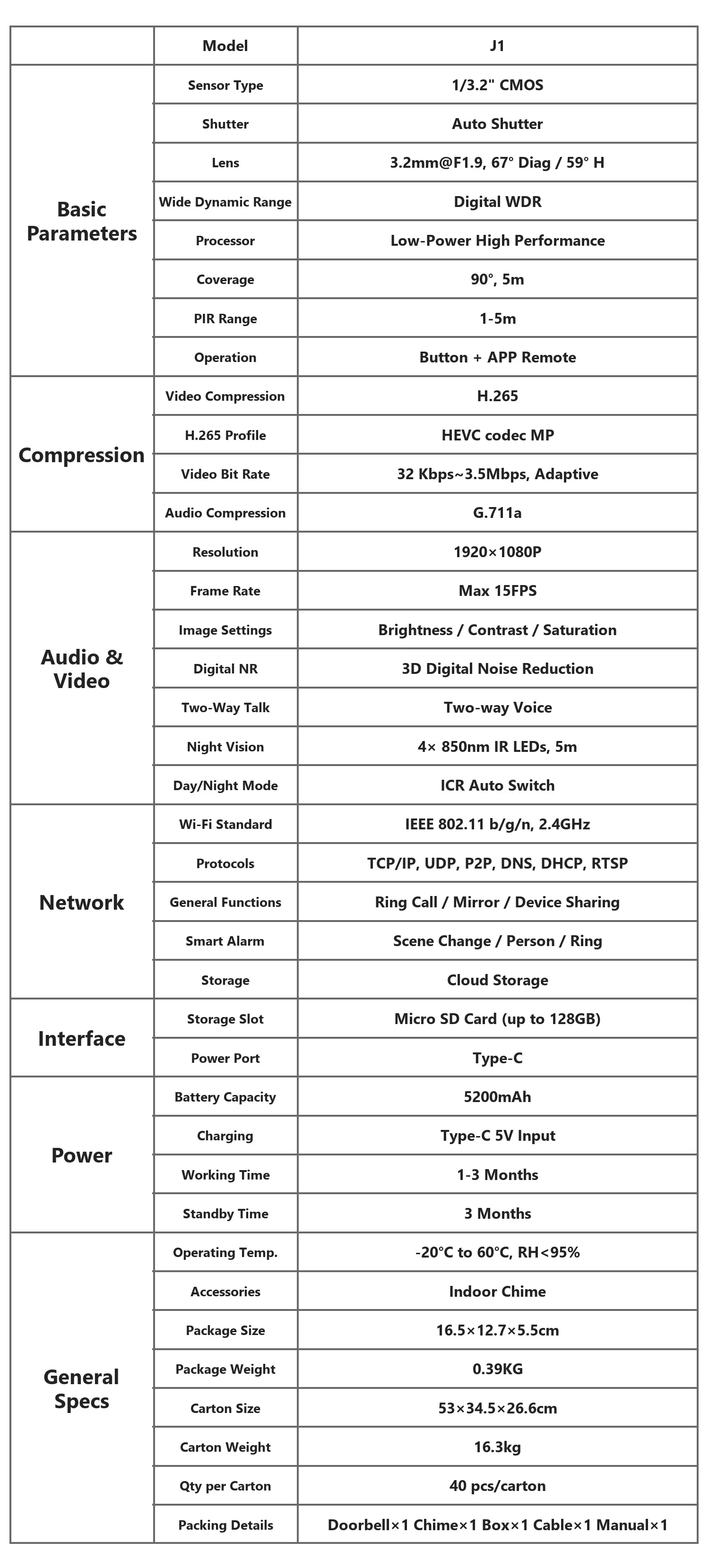

Specifications
| Model | J1 |
|---|---|
| Resolution | 1920 × 1080 (Full HD), up to 15 fps |
| Camera | 1/3.2" CMOS, 3.2 mm @ F1.9 — 67° diagonal / 59° horizontal lens |
| Coverage | 90° scene coverage, up to 5 m |
| Frame rate | Up to 15 fps |
| Compression | H.265 (HEVC main profile), 32 Kbps–3.5 Mbps adaptive |
| Night vision | 4 × 850 nm IR LEDs, up to 5 m, automatic ICR switch |
| Motion detection | PIR sensor, 1–5 m range |
| Audio | Two-way voice, G.711a compression, 3D noise reduction |
| Smart alarms | Motion, person detected, doorbell press |
| WiFi | IEEE 802.11 b/g/n — 2.4 GHz only |
| Protocols | TCP/IP, UDP, P2P, DNS, DHCP, RTSP |
| Storage | Micro SD card up to 128 GB, optional cloud storage |
| Power | 5200 mAh rechargeable battery, USB Type-C 5 V input |
| Battery life | 1–3 months typical use, up to 3 months standby |
| App & sharing | iOS / Android app, device sharing, mirror flip |
| Operating temperature | −20 °C to 60 °C, RH < 95% |
| Doorbell size | 51 × 36 × 145 mm |
| Chime size | 40 × 13 × 60 mm |
| Best for | Apartments, rentals and front doors with no existing wiring |
| MOQ | 50 units per model — mixed models and mixed cartons welcome |
| Lead time | Up to 1,000 units ship now; over 1,000 units in 7 days |
| OEM / ODM | From 300 units per model — logo, packaging, manual and colour |
| Certificates | CE, RoHS, FCC |
| Ships from | Shenzhen, China |
Packing & Freight
| Boxed unit weight | 0.39 kg |
|---|---|
| Colour box size | 165 × 127 × 55 mm |
| Units per carton | 40 pcs |
| Carton size | 530 × 345 × 266 mm |
| Carton gross weight | 16.3 kg |

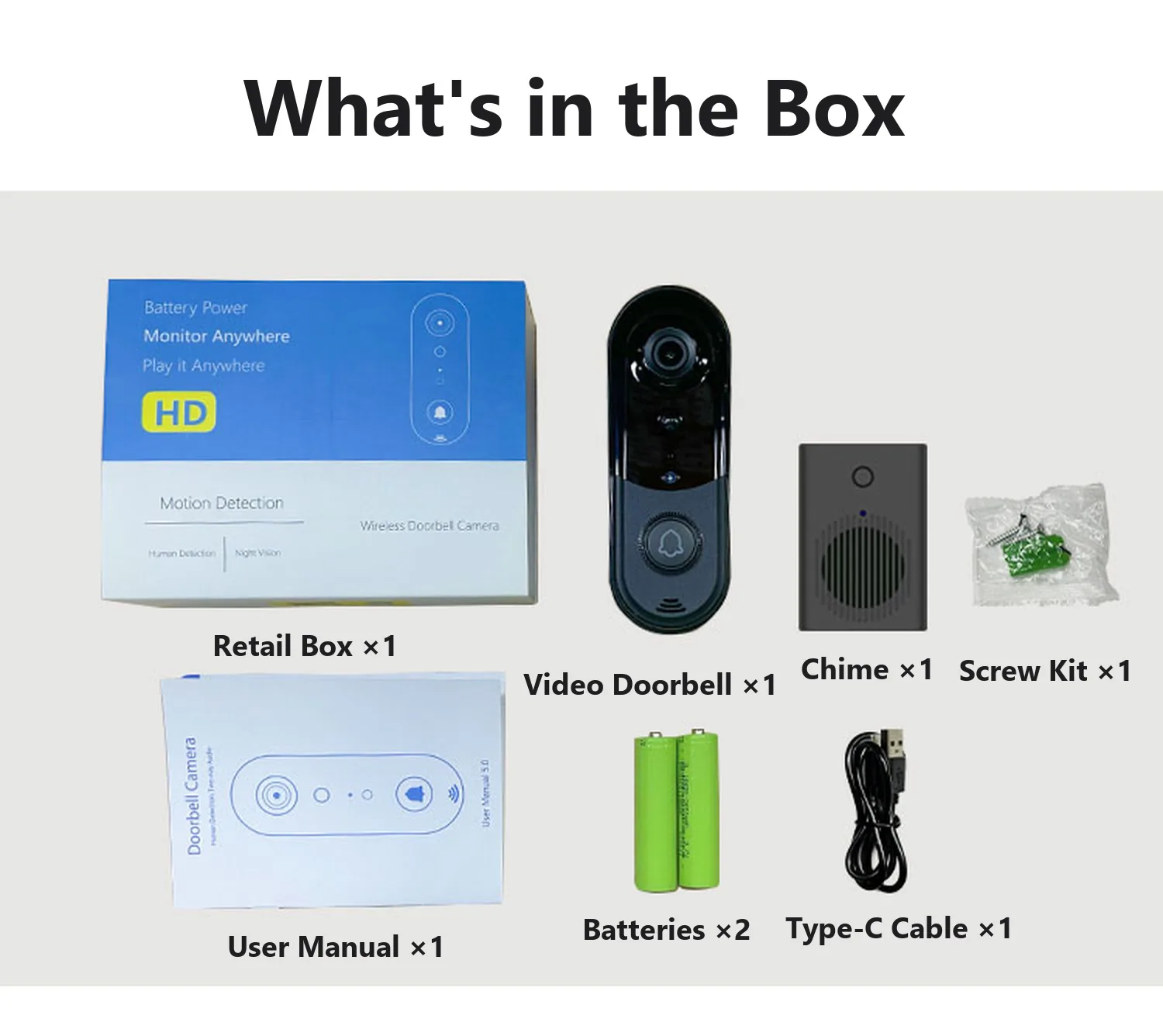

What's in the Box (Plug options: US / EU / UK)
- Video doorbell
- Indoor chime
- Mounting kit
- Type-C charging cable
- Screw kit
- User manual
- Retail packaging
Compare with other video doorbells
Where the J1 fits in the range
The J1 is the entry point of the doorbell range and the cheapest way to put a camera on the door. It shares the 2.4 GHz WiFi platform, the app-side device sharing and the microSD-or-cloud recording logic with the rest of the line, so a distributor can sell it to the same retail accounts without a second app story.
Sell it where the buyer has no low-voltage wiring at the door — apartments, rentals, older housing stock — and keep the J2/J4 for buyers who ask for 2K or for IP65. One carton holds 40 units, so a small first order is a single pallet line.
